Blade cutting machine PE-B2025II

laserfor cottonsheet metal

Product name

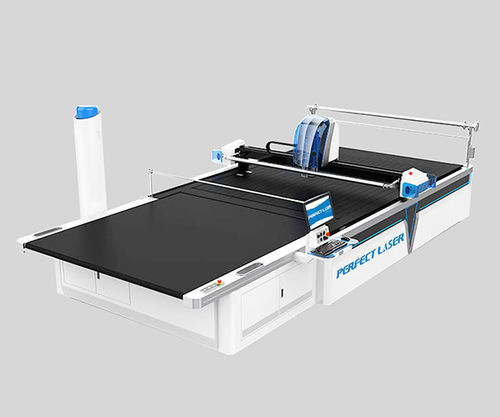

Automatic Multi-layer Fabric Cutting Machine for Cotton / Nylon / Wool / Artificial Leather (Perfect Laser)

Model
PE-B2025II

Introduction
Perfect Laser automatic fabric cutting machine controls the cutting tool based on CAD/CAM data to ensure high dimensional accuracy and repeatability. Compared with traditional cutting beds, the automatic system increases material utilization, speeds up cutting cycles, shortens production lead times and reduces labor requirements.

Machine features

• Independent software compatible with standard CAD formats; direct import of customer nesting/layout files.
• High throughput and process efficiency: fast cutting speed and stable accuracy reduce rework and downstream processing time.
• Precision and safety: automatic cutting achieves accuracy around ±1 mm, improving consistency versus manual cutting.
• Simple operation: streamlined workflow for operators; measured productivity gains (e.g. ≈+10% on knitted fabrics vs manual cutting).
• Intelligent blade management: automatic sharpening intervals based on usage time or cutting length to maintain blade condition and dimensional stability.
• Low consumable and wear-part costs: overlay film, perforated kraft paper and brushes with long life; example cutting cost ~US$0.17/m.
• Improved production environment: reduced dust/noise and cleaner cut parts for easier handling and sewing.

Typical applications

• Textile and garment manufacturing: garments, footwear components, bags.
• Leather goods: bags, belts, wallets, gloves.
• Home textiles and décor: curtains, upholstery covers, bedding.
• Printing and packaging: labels, samples, packaging inserts.
• Automotive interiors: seat covers, steering wheel covers, trim components.

Commercial / Logistic Info
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: wooden case
Delivery Time: 15-28 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Units Per Year

Technical data
Product name: Automatic Multi-layer Fabric Cutting Machine
Model: PE-B2025II
Max Cutting Height: 6 cm / 9 cm (after Vac-sorb)
Cutting Window: Length – no limitation; Width – not wider than fabric width
Working Width (Y): 1700 mm / 2000 mm / 2200 mm
Normal Working Length (X): 2500 mm / 3300 mm optional
Electricity: Three phase 380V, 50-60Hz
Power Consumption: 18 KW max
CAD & CAM Connect Way: Ethernet communication / USB flash memory
Max Speed of Blade Working: 6000 RPM
Compressed Air: 0.55 MPa, 160 L/min
Cutting Speed: 6000 mm/min
Acceleration: 0.8–1 g (N/kg)
Noise Level: ≤75 dB(A)
Warranty: 12 Months

Highlights
Automatic multi-layer fabric cutting; artificial leather cutting; efficient cutting for cotton and knitted fabrics.
