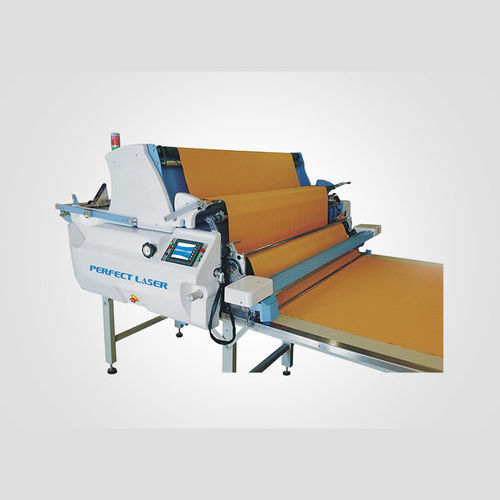

Automatic spreading machine PE-B1203

for textiles

Product Overview
Automatic fabric spreading machine model PE-B1203 from Perfect Laser. Fully automatic PLC touchscreen control, configurable widths (1.6 / 1.9 / 2.1 m), adjustable spreading speed 0–100 m/min and integrated stacking for high-volume textile production. Designed for consistent, wrinkle-free spreading and fast transfer to downstream processes.

Key Features

• PLC touchscreen control: set length, method, quantity, speed and sections via intuitive interface.
• Automatic spreading device: adapts tension and width for flat, wrinkle-free laying.
• Adjustable cutting blade: removable blade unit with speed and stroke adjustments according to fabric width.
• Folding & double-pull support: enables single or double pull and round-trip spreading to increase throughput.
• Automatic pre-loosening: relieves tension before spreading to ensure uniform quality.
• Edge detection & automatic alignment: precise edge tracking and automatic alignment during spreading.
• Fabric end sensor: stops machine and returns to origin when roll is fully spread.
• Automatic height adjustment: sets rise amount according to fabric thickness for consistent laydown.
• Emergency stop & safety: emergency stop cables on both sides of the cutting bed.
• Remote control: supports remote start/stop and lift adjustments for the feeding mechanism.

Applications
Suitable for mass production in clothing, home textiles, automotive interiors, non-wovens, mesh, luggage, leather goods, toy fabrics, medical gauze and coated/synthetic fabrics.

Technical Specifications

• Model: PE-B1203
• Brand: Perfect Laser
• Origin: China
• Certifications: CE / ISO / TUV / SGS
• Available widths: 1.6 m, 1.9 m, 2.1 m (customizable)
• Voltage: 220 V
• Power: 1 kW
• Spreading speed: 0–100 m/min (adjustable)
• Single pull height: 26 cm
• Double pull height: 27 cm
• Max fabric weight: 80 kg
• Max fabric roll diameter: 50 cm
• Machine dimensions (L×W×H mm): 2360×1380×970 | 2660×1380×970 | 2860×1380×970
• Packing dimensions (L×W×H mm): 2606×1290×1215 | 2906×1290×1215 | 3106×1290×1215

Packaging & Delivery

• Minimum order quantity: 1 unit
• Price: negotiable
• Packing: sea-worthy or air-worthy packing
• Delivery time: typically 3–7 working days
• Supply ability: 400 sets per month
• Payment terms: L/C, T/T, Western Union, MoneyGram

Competitive Advantages

• PLC touchscreen for fast parameter changes and repeatable setups.
• Customizable widths and integration options to match production lines.
• Energy-saving auto-shutdown after inactivity and safety-focused design.
• After-sales support and export-ready packaging for global distribution.
