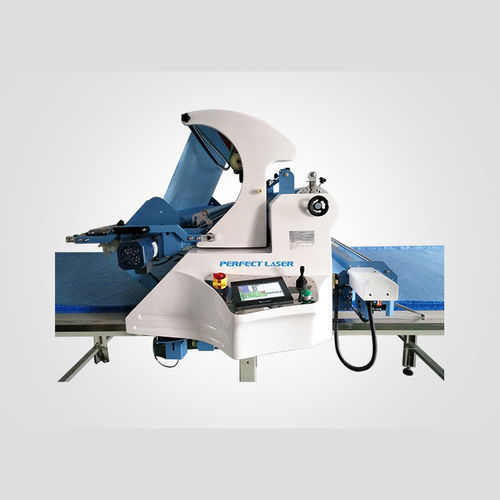

Automatic spreading machine PE-B1202

for textiles

Product Introduction The PE-B1202 automatic fabric spreading machine is designed for industrial cutting and preparation lines. It spreads rolls without tension using a roller conveyor system to deliver flat, consistent layers at adjustable speeds up to 0-100 m/min. The machine is operated via an LCD touch panel and typically requires one operator plus one assistant for loading and supervision.

Product Features

• Tension-free spreading by roller conveyor for improved flatness and reduced material deformation.
• High-precision servo drives for stable long-run operation and accurate speed control.
• LCD touch interface with intuitive controls; short training time for operators.
• Electrostatic spray finish with high-temperature coating for durable surface protection.
• Automatic edge alignment and integrated fabric cutting for production consistency.
• Compact, streamlined frame to reduce vibration and noise in production areas.

Application

• Application industries: garment manufacturing, automotive interiors, home textiles, upholstery, footwear, bags, umbrellas, toys, outdoor tents and related mass-production lines.
• Suitable materials: cotton, linen, silk, blended fabrics, fibers, non-wovens, mesh, gauze, leather, toy fabrics, waterproof materials, rubber and similar flexible substrates.

Technical Data

• Product name: Automatic fabric spreading machine
• Model: PE-B1202
• Available widths: 1.6 m / 1.9 m / 2.1 m
• Voltage: 220 V
• Power: 1 kW
• Spreading speed: 0-100 m/min (adjustable)
• Single pull height: 26 cm
• Double pull height: 27 cm
• Maximum fabric roll weight: 80 kg
• Maximum roll diameter: 50 cm
• Machine dimensions (L*W*H): 2450*1330*900 / 2750*1330*900 / 2950*1330*950
• Packing dimensions (L*W*H): 2586*1220*1215 / 2886*1220*1215 / 3086*1220*1215
• Customization: spreading height and auxiliary systems can be configured per customer requirements.

Packaging & Delivery

• Packaging suitable for sea or air transport.
• Typical lead time: 3-7 working days (subject to stock and order size).
• Prepared by trained packing staff and handled via professional logistics partners.

Competitive Advantages

• Designed for continuous high-speed production with consistent spreading quality.
• Low maintenance design with widely available components for reduced downtime.
• Flexible configuration and quick commissioning to integrate into existing lines.
• After-sales support and spare parts availability.
