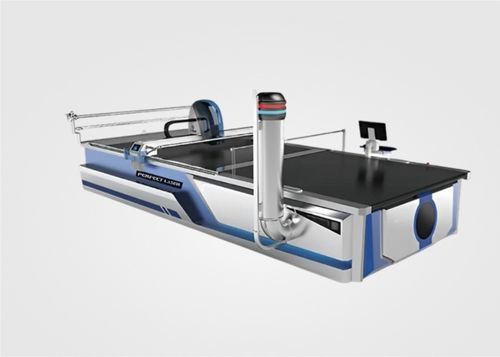

Knife cutting machine PE-B2233

bladelasertextile

Product overview
The fully automatic multi-layer fabric cutting machine PE-B2233 by Perfect Laser uses CAD/CAM data to control blade rotation and cutting paths for precise part production. Equipped with a high-speed electric vibrating knife and a reinforced, CNC-machined structure, it delivers high-speed, high-precision cutting of multiple layers across a wide range of flexible materials for textile, apparel, automotive interiors, home textiles, luggage and outdoor products.

Main features

• Integrated frame annealed at high temperature (540°C for 12 hours) for improved structural stability.
• Track mounting and bristle feeding support surfaces machined on large CNC gantry mills to ensure installation accuracy and drive-component stability at high speed.
• XY axis driven by precision gear rack to increase accuracy and repeatability.
• One-piece open-mold beam in high-strength industrial aluminum extrusion, CNC-milled for stability and finish.
• Vacuum pump filter structure to improve pump safety, extend service life and reduce environmental impact of cutting beds.

Applications

• Applicable materials: knitwear, woven and composite cotton, thermal underwear, bras, T-shirts, jeans, non-woven fabrics, plush toys, leather and other flexible materials.
• Applicable industries: garment manufacturing, footwear, packaging, advertising, composite materials, automotive interior and related sectors.

Product details

• Manufacturer/Brand: Perfect Laser
• Model: PE-B2233
• Minimum Order Quantity: 1 unit
• Price: Negotiable
• Packaging: Sea-worthy or air-worthy packing
• Delivery Time: 15–28 days
• Payment Terms: L/C, T/T, Western Union
• Supply Ability: 500 units per year

Comparison (automatic fabric cutting machine vs hand cut)
Automatic fabric cutting machine vs Hand cut
Precision cutting, high efficiency and accuracy vs Large cutting error, low accuracy and efficiency
Improves downstream sewing efficiency vs Low efficiency for subsequent sewing
Saves fabric (2%–4%) and labor vs Requires large manual workforce, higher fabric waste
Lower management costs vs High staff turnover and difficult management
Cleaner, orderly cutting environment reduces managerial burden vs Messy, inefficient cutting site

Technical specifications (excerpt)

• Place of Origin: China
• Brand Name: Perfect Laser
• Certification: CE
• Model Number: PE-B2233
• Cutting Height: 6 cm / 9 cm (after adsorption)
• Working Width (Y): 1800 mm / 2000 mm / 2200 mm (optional)
• Standard Cutting Length (X): 2500 mm / 3300 mm (optional)
• Standard Picking Table Length (X): 2200 mm / 3000 mm
• Power Supply: Three Phase 380V, 50–60Hz
• Power Consumption: 18 kW MAX
• Max Blade Speed: 6000 RPM
• Compressed Air: 0.55 MPa, 160 L/min
• Max Cutting Speed: 60000 mm/min
• CAD & CAM connection: Ethernet communication / USB flash memory
• Acceleration: 1 ~ 1.2 g (N/kg)
• Noise Level: < 72 dBA
