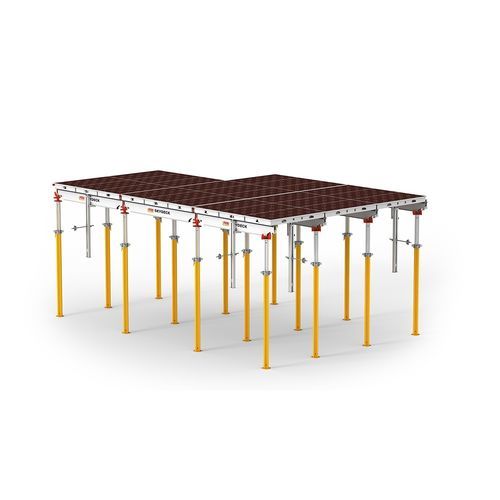

Modular formwork SKYDECK

lightweightslabaluminum

Overview
The proven aluminum panelized slab formwork designed for very fast shuttering times.

Product description
SKYDECK covers applications from residential buildings to industrial projects with thick slabs. Its lightweight aluminum panels, simple systematic assembly and extensive accessory range enable fast, safe site operations. The drophead system allows early striking, reducing on-site material requirements and accelerating reuse of panels and girders. Low prop requirements increase working space beneath the formwork and simplify horizontal material transport.

Applications / Project examples

• Frankley WTW — effortless working with very lightweight, easy-to-handle components.
• South Quay Plaza — fast forming due to a simple and systematic assembly sequence and a minimum of slab props.
• Hollis Croft — reduced on-site material needs thanks to early striking with the drophead and quick deployment of panels and beams on the next storey.
• Park Drive — easy cleaning through powder-coated elements, plastic components and undercut panel edges.

Multimedia
Embedded product video available showing SKYDECK in action (video title references SKYDECK Panelized Slab Formwork).

Technical specifications

• System type: Panel slab formwork
• Panel sizes: 150 x 75 cm | 150 x 50 cm | 150 x 37.5 cm | 75 x 75 cm | 75 x 50 cm | 75 x 37.5 cm
• Girder lengths: 375 cm | 225 cm | 150 cm
• Area/support: 3.45 m²
• Material: Aluminum
• Formlining: 9 mm FinPly
• Installation time: Early striking possible after one day with drophead; formwork lowered by 60 mm with a hammer blow.
• Anti-corrosion and coating: Powder coating
• Fulfilled standard: DIN 18202, line 7 with ceiling thickness 95 cm
• Slab thickness: Up to 109 cm at any height
• Load: Permissible platform load: 150 kg/m²
• Other: Quick support selection using table book, systematic assembly sequence and assembly safety
