Single screw coextruder
compactlaboratoryvented

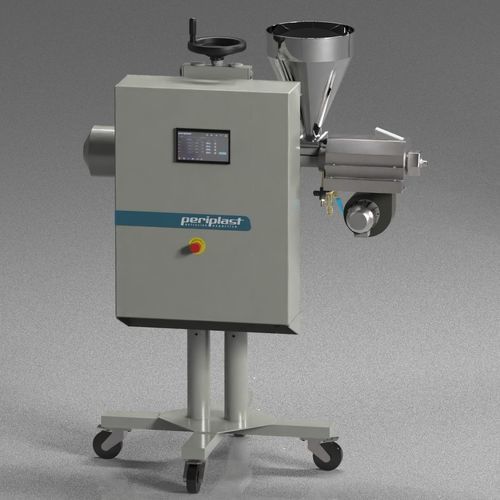

Single screw coextruder - Periplast - compact / laboratory / vented

Single screw coextruder - Periplast - compact / laboratory / vented - image - 2

Single screw coextruder - Periplast - compact / laboratory / vented - image - 3

Single screw coextruder - Periplast - compact / laboratory / vented - image - 4

Single screw coextruder - Periplast - compact / laboratory / vented - image - 5

Add to favorites

Compare this product

Go to the Periplast website for more information

Characteristics

Number of screws

single screw

Other characteristics

compact, laboratory, vented, for cables

Output

Min.: 2 kg/h
(4.4092 lb/h)

Max.: 20 kg/h
(44.0925 lb/h)

Screw diameter

15 mm, 20 mm, 25 mm, 30 mm
(0.6 in, 0.8 in, 1 in, 1.2 in)

Power

Min.: 1.1 kW
(1.5 hp)

Max.: 5.5 kW
(7.48 hp)

Description

Plasticizing unit designed for the production sensitive materials at high rates: plain feeding section and high output screw design. Nitrated screw and barrel. Degassing on 33D models. Temperature control by heating bands and/or fans/water/tempering oil. Insulated barrel for high-efficiency control of temperature. Main motor AC type and Heavy – duty gearbox with thrust bearing or high efficiency solutions in several stages of efficiency/solution and price. Extruder controller includes main motor control, heating/cooling of barrel (several types of) possibility of control of extra drives, feeders, etc. Main Features Other L/D ratios available Output depending on the power/torque of the driving solution and the material to be produced Several options of base frames and adjustments to the extrusion centre axis to better suit customers’ needs.
