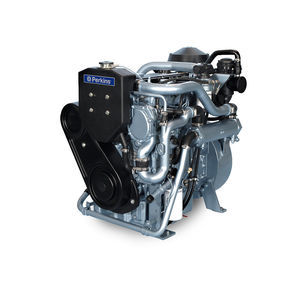

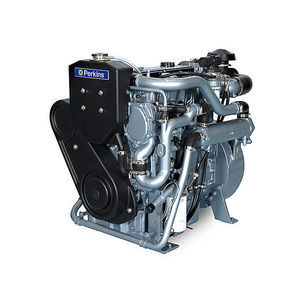

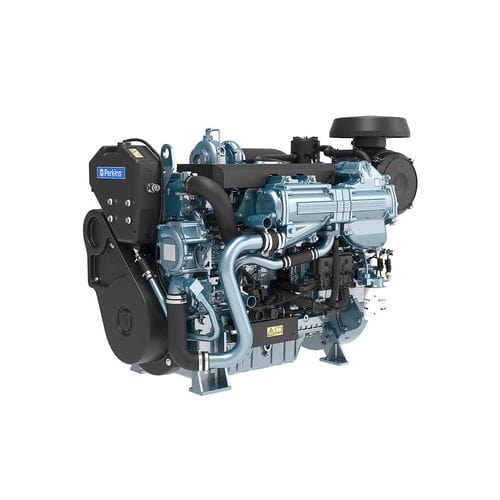

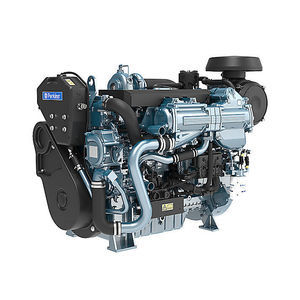

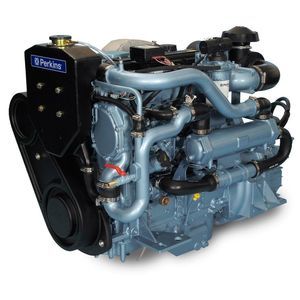

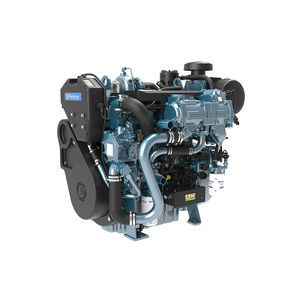

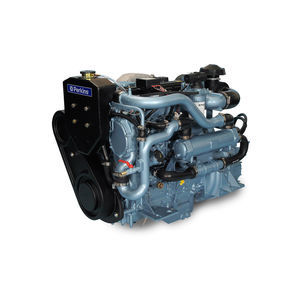

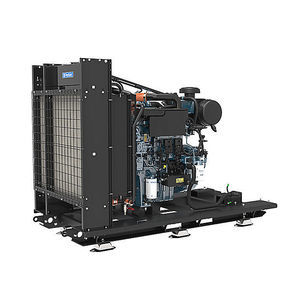

Diesel engine E70B

6-cylindercommon-railturbocharged

Overview
Our marine engines for auxiliary applications provide low cost of ownership, excellent fuel economy and competitive pricing for both engine and parts. Auxiliary engines generate a vessel's on-board electricity, so they require fast starting, low noise and low emissions. For heavy-duty tasks such as powering a large fishing vessel's electrically driven net-haul system, a dedicated auxiliary engine supplies the necessary continuous power rather than relying on the propulsion engine.

Features At A Glance

• Lower operating costs - Service intervals 500 hours as standard and Perkins provides comprehensive warranty cover for 2 years, with 3 years on major engine components.
• Powered by your needs - Perkins engines can be tailored specifically for your application. These engines offer a choice of standard build configurations to match diverse customer requirements.
• World class product support - With over 80 years' experience, Perkins provides strong global support through a network of distributors and service outlets, giving access to parts and exchange units 24/7.

Power Rating (table)
Minimum Power: 109 kW
Maximum Power: 218 kW
Rated Speed: 1800 rpm

General (table)
Bore: 105 mm
Stroke: 135 mm
Displacement: 7 l
Aspiration: Turbocharged aftercooled
Rotation from Flywheel End: Anti-clockwise
Total Lubricating Capacity: 21 l
Cooling System: Liquid
Compression Ratio: 16.5:1
Cycle: 4 stroke
Total Coolant Capacity: 35.5 l
Combustion System: Direct injection
Number of Cylinders: 6 vertical inline

Engine Dimensions* (table)
Height: 1132 mm
Width: 836 mm
Length - Flywheel Housing: 1368 mm
Dry Weight: 759 kg

Standard Equipment
Air inlet system

• Air filter
• Inlet air restriction indicator
• Filtered CCV
• Water jacketed exhaust manifold
• Water jacketed turbocharger

Control system

• Full electronic control system
• Engine harness with IP55 Customer connect for engine sensors and SAE J1939 CAN bus
• Cold start aid, ECM controlled to -15 °C (5 °F)

Cooling system

• Gear driven fresh and auxiliary water pumps
• Thermostatically controlled cooling water system
• Galvanically neutral anode free system

Flywheels and flywheel housing

• SAE2 and SAE3
• Single and dual starter position

Fuel system

• High pressure common rail system
• Self priming
• Engine mounted fuel filter

Oil system

• High inclination oil sump
• Integral plate type engine oil cooler
• Engine mounted oil filter

Disclaimer
Final dimensions dependent on selected options.

Technical specifications

• Model: E70B Turbo Aftercooled Fixed Speed
• Minimum power: 109 kW
• Maximum power: 218 kW
• Rated speed: 1800 rpm
• Bore x Stroke: 105 mm x 135 mm
• Displacement: 7.0 l
• Aspiration: Turbocharged aftercooled
• Number of cylinders: 6 vertical inline
• Combustion system: Direct injection
• Compression ratio: 16.5:1
• Rotation (from flywheel end): Anti-clockwise
• Total lubricating capacity: 21 l
• Total coolant capacity: 35.5 l
• Cooling system: Liquid
• Cycle: 4 stroke
• Engine height: 1132 mm
• Engine width: 836 mm
• Length (flywheel housing): 1368 mm
• Dry weight: 759 kg
• Service intervals: 500 hours (standard)
