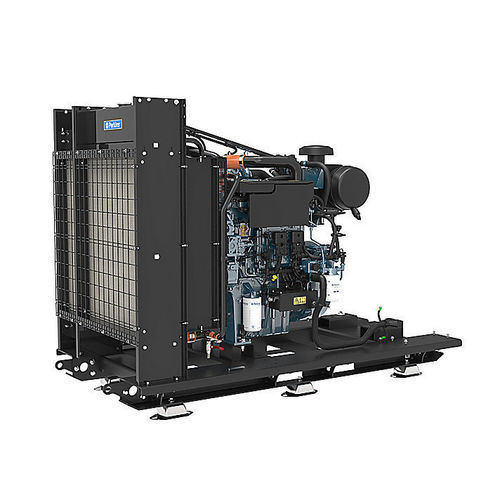

Diesel engine E44

4-cylinderturbochargedin-line

Overview
Designed for auxiliary marine applications, the E44 Radiator auxiliary marine engine delivers reliable on-board electrical generation and power for auxiliary systems. It is optimized for quick starting, low noise and reduced emissions, and is suited to continuous heavy-duty use such as powering electrically driven net haul systems.

Features At A Glance

• Lower operating costs — Service intervals: 500 hours standard; comprehensive warranty cover: 2 years, 3 years on major engine components.
• Powered by your needs — Configurable standard-build options to match diverse auxiliary applications.
• World class product support — Global distributor and service network providing access to parts and exchange units 24/7.

Key Specs
Minimum Power: 61 kW (81.8 hp)
Maximum Power: 115 kW (154 hp)
Bore: 105 mm (2.7 in)

Product Specifications
Power Rating
Minimum Power: 61 kW (81.8 hp)
Maximum Power: 115 kW (154 hp)
Rated Speed: 1500-1800 rpm

General
Bore: 105 mm (2.7 in)
Stroke: 127 mm (3.2 in)
Displacement: 4.4 l (268 in³)
Aspiration: Turbocharged aftercooled
Rotation from Flywheel End: Anti-clockwise
Cycle: 4 stroke
Total Coolant Capacity: 21 l (5.5 gal US)
Total Lubricating Capacity: 10.5 l (2.77 gal US)
Cooling System: Liquid
Number of Cylinders: 4 vertical inline
Compression Ratio: 16.5:1
Combustion System: Direct injection

Engine Dimensions*
Height: 1038 mm (40.8 in)
Length - Flywheel Housing: 856 mm (33.7 in)
Width: 814 mm (32 in)
Dry Weight: 975 kg (2,149 lb)

Standard Equipment (selected)

• Air inlet system: Air filter; Inlet air restriction indicator; Filtered CCV; Water jacketed exhaust manifold; Water jacketed turbocharger.
• Control system: Full electronic control system; Engine harness with IP55 customer connect for engine sensors and SAE J1939 CAN bus; Cold start aid, ECM controlled to -15 °C (5 °F).
• Cooling system: Gear driven fresh and auxiliary water pumps; Thermostatically controlled cooling water system; Galvanically neutral anode-free system.
• Flywheels and flywheel housing: Backend - SAE3; Single starter position.
• Fuel system: High pressure common rail system; Self priming; Engine mounted fuel filter.
• Oil system: High inclination oil sump; Integral plate type engine oil cooler; Engine mounted oil filter.

Disclaimer
Final dimensions dependent on selected options.

Technical specifications

• Model: E44 Radiator
• Minimum power: 61 kW (81.8 hp)
• Maximum power: 115 kW (154 hp)
• Rated speed: 1500-1800 rpm
• Bore x Stroke: 105 mm x 127 mm (2.7 in x 3.2 in)
• Displacement: 4.4 l
• Cylinders: 4 vertical inline
• Aspiration: Turbocharged aftercooled
• Cooling: Liquid
• Dry weight: 975 kg
