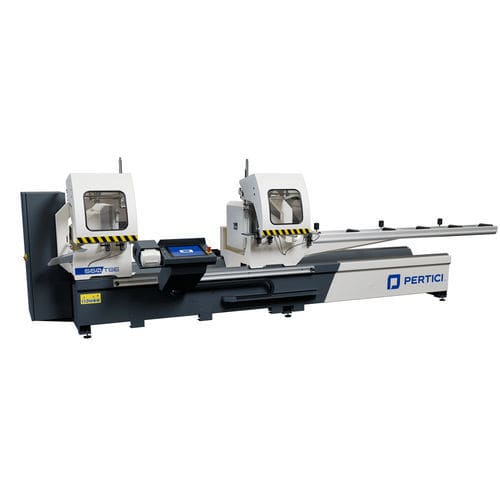

Aluminum double-head miter saw TSE series

for PVCwith integrated positionerfor profiles

Overview
550 TSE and 600 TSE are double-head cutting machines with electronically controlled axes, equipped with Ø 550 mm and Ø 600 mm blades respectively. They are designed for integration into production lines requiring precise angle cutting and fast cycle times.

Construction and cutting units
The machine is built on a robust electro-welded steel base supporting a fixed cutting unit and a movable cutting unit that slides on an electronically positioned X-axis. Both RF and RM heads have rotary axes allowing cutting angles from 45° (internal) to 20° (external). The blade is driven by an oleo-pneumatic cylinder with an output speed regulator and quick return.

Clamping and protection
A horizontal clamping system with double cylinder combined with vertical clamping ensures secure fixation of all profile types. Pneumatic drop-down protections isolate the operating units during cutting, improving operator safety and usability.

Control & HMI
Latest-generation control with a 15" touch-screen monitor on a Windows 10 platform, enabling easy programming of all cutting operations and fast integration into production workflows.

Options
Both models can be fitted with an industrial label printer for part identification and job association.

Ideal for

• PVC
• Aluminium

Characteristics / technical specifications

• Model names: 550 TSE (Ø 550 mm blade), 600 TSE (Ø 600 mm blade)
• Machine type: double-head cutting machine with electronically controlled axes
• Base: robust electro-welded steel base
• Cutting units: fixed cutting unit + movable cutting unit sliding on electronically positioned X-axis
• Rotary axes (RF and RM heads): rotation range from 45° internal to 20° external
• Blade drive: oleo-pneumatic cylinder with output speed regulator and quick return
• Clamping: horizontal clamping with double cylinder and vertical clamping for secure profile fixing
• Protections: pneumatic drop-down protections isolating operating units during cutting
• Control: 15" touch-screen monitor on Windows 10 platform
• Optional equipment: industrial label printer for part identification and job association
• Integration: designed for easy integration into production cycles
• Suitable materials: PVC and Aluminium
