Blade cutting machine CTE series

for PVCfor aluminumfor aluminum profiles

Overview

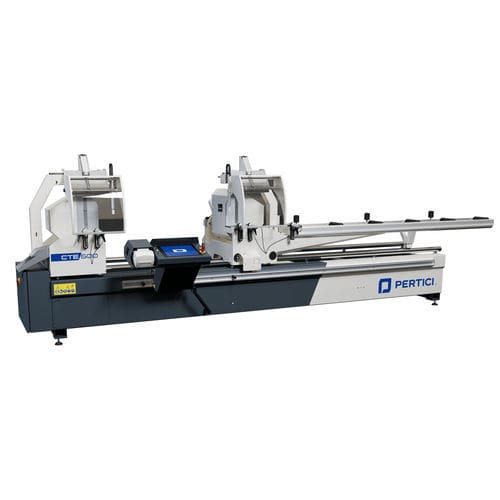

The CTE600 and CTE500 are double-head cutting machines with electronically controlled axes, equipped with blades of Ø 600 mm and Ø 500 mm respectively. The machine is built from three main structures: an electro-welded steel base securing the fixed cutting unit, and a mobile cutting unit that slides along an electronically positioned X-axis.

Main features

• Double-head cutting machines with controlled axes
• Blade diameters: Ø 600 mm (CTE600) and Ø 500 mm (CTE500)
• Three main structures: electro-welded steel base, fixed cutting unit, mobile cutting unit on electronically positioned X-axis
• Rotary axes on RF and RM heads: rotation range from 45° (internal) to 20° (external)
• Blade drive: oleo-pneumatic cylinder with output speed regulator and quick return
• Clamping: horizontal double-cylinder system plus vertical clamping for secure profile fixation
• Safety: local pneumatic drop-down guards isolating operating units during cutting
• User interface: 15" touch screen monitor on Windows 10 platform for programming cutting operations
• Optional: industrial label printer for job identification and association

Integration and interface

CTE600 and CTE500 are designed for integration into production cycles. The 15" touch screen on a Windows 10 platform enables programmed cutting operations and straightforward operator interaction.

Optional equipment

The machine can be fitted with an industrial label printer to identify and associate parts with their job orders.

Ideal for

• PVC
• Aluminium

Technical specifications

• Double-head cutting machines with controlled axes
• Blade diameters: Ø 600 mm (CTE600) and Ø 500 mm (CTE500)
• Construction: electro-welded steel base with fixed and mobile cutting units (electronically positioned X-axis)
• Rotary axes RF and RM: 45° (internal) to 20° (external)
• Blade actuation: oleo-pneumatic cylinder with output speed regulator and quick return
• Clamping system: horizontal double-cylinder and vertical clamping
• Safety: local pneumatic drop-down guards
• HMI: 15" touch screen on Windows 10 for programming
• Option: industrial label printer for identification and job association
