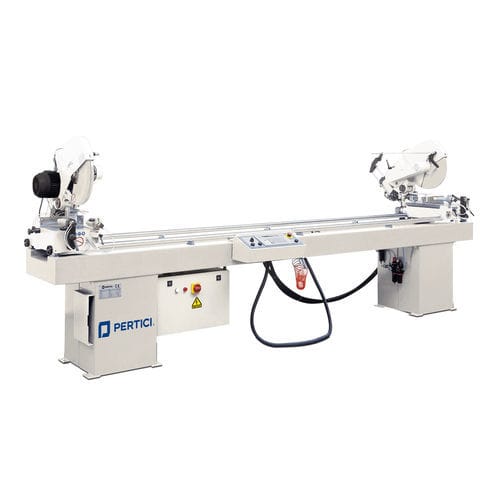

PVC double-head miter saw IP series

for aluminumfor profilescompound angle

Overview
402 IP and 403 IP are double-head pendulum cutting machines with downward blade movement suitable for cutting PVC and aluminium profiles.

Product description
The machines feature a combined blade movement: vertical table rotation from -45° to +45° (manual) and external horizontal tilting from 90° to 45°. Cutting units use Ø 400 mm blades driven by pneumatic cylinders. A horizontal and vertical clamping system secures the profile during machining. Two working lengths are available: 3.5 m and 5 m.

Ideal for

• PVC
• Aluminium

Versions

• 402 IP: moving head operated manually; working length set by a metric scale.
• 403 IP: moving head with a controlled axis; allows management of working dimensions and storage of profile data.

Technical specifications

• Machine type: double-head pendulum cutting machine
• Blade movement: downward
• Combined blade movement: vertical table rotation -45° to +45° (manual) and external horizontal tilting 90° to 45°
• Clamping: horizontal and vertical clamping system
• Cutting units: Ø 400 mm blades
• Blade drive: pneumatic cylinders
• Working lengths available: 3.5 m and 5 m
• 402 IP: manual moving head; length set by metric scale
• 403 IP: moving head with controlled axis; dimension management and profile data storage
