Cabinet power supply AUX24 series

AC/DCregulatedsingle-output

Product Overview

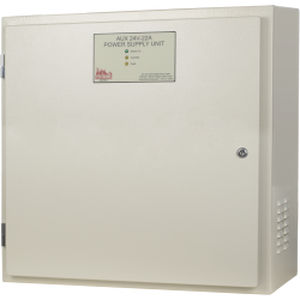

Auxiliary power supply system complete with AS7240.4 supervised power supply unit in a lockable cabinet. Suitable for sealed valve-regulated lead-acid batteries from 7 amp-hours to 100 amp-hours.

Physical Dimensions

• Dimensions: 570 H x 575 W x 278 D mm
• Battery Compartment Dimensions: 500 H x 400 W x 255 D mm
• Weight: 18.0 kg (excluding batteries)

Description
The 22 amp AUX24/22PSU-7240 has a 24/22PSUV2-7240 power supply unit. Auxiliary power supply systems are supplied without batteries.

Features

• Main-operated dc power supplies
• Automatic battery backup
• Capable of supplying full system load without batteries
• Automatic fault supervision
• Internal diagnostic 7-segment fault indicator
• DIP-switch configurable for fire panel (Panel mode) or stand-alone applications (Stand-Alone mode)
• The auxiliary power systems include:

• External panel indicators: MAINS present, AUTOMATIC TEST, FAULT
• Lockable front door
• 32mm diameter knockouts for cable entry

Ordering Information
Product Code: AUX24/22PSU/575L
Description: 24V 22A Monitored PSU (AS7240.4) in BATCAB-575L with 003 Camlock

Technical specifications

• Model: AUX24 series
• Power supply unit: 24/22PSUV2-7240 (AS7240.4 supervised PSU)
• Output rating: 24V 22A
• Battery compatibility: Sealed valve-regulated lead-acid batteries, 7 amp-hours to 100 amp-hours
• Dimensions (cabinet): 570 H x 575 W x 278 D mm
• Battery compartment dimensions: 500 H x 400 W x 255 D mm
• Weight: 18.0 kg (excluding batteries)
• Indicators: External indicators for MAINS present, AUTOMATIC TEST, FAULT
• Fault supervision: Automatic fault supervision with internal 7-segment diagnostic indicator
• Configuration: DIP-switch selectable Panel mode or Stand-Alone mode
• Enclosure features: Lockable front door; 32mm knockouts for cable entry
