Cabinet power supply AUX24DCsingle-outputregulated
Add to favorites
Compare this product
Characteristics
- Mounting / format
- cabinet
- Type
- DC
- Output
- single-output, regulated
- Connection
- by cable
- Other characteristics
- stand-alone, with emergency power supply
- Input voltage
230 V
- Output voltage
24 V
- Current
5 A
- Power
120 W
(0.16 hp)
Description
Product overview

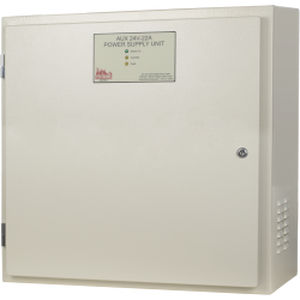

Auxiliary monitored power supply system installed in a lockable BATCAB-550 cabinet. Fitted with an AS 7240.4 supervised power supply unit (internal PSU model 24/5PSUV2-7240) providing 24V at 5A. Compatible with sealed valve-regulated lead-acid (VRLA) batteries from 7 Ah to 50 Ah. ActivFire Certificate Number: afp - 3865. Systems are supplied without batteries.
Dimensions & weight
Features
Ordering Information
Product Code
Description
AUX24/5PSU/550
24V 5A Monitored PSU (AS7240.4) in BATCAB-550 with 003 Camlock
Technical specifications
Auxiliary monitored power supply system installed in a lockable BATCAB-550 cabinet. Fitted with an AS 7240.4 supervised power supply unit (internal PSU model 24/5PSUV2-7240) providing 24V at 5A. Compatible with sealed valve-regulated lead-acid (VRLA) batteries from 7 Ah to 50 Ah. ActivFire Certificate Number: afp - 3865. Systems are supplied without batteries.
Dimensions & weight
- Dimensions: 350 H x 575 W x 190 D mm
- Battery compartment dimensions: 200 H x 400 W x 170 D mm
- Weight: 7.0 kg (excl. batteries)
Features
- Main-operated DC power supply with automatic battery backup
- Capable of supplying full system load without batteries installed
- Automatic fault supervision with internal diagnostics
- Internal 7-segment fault indicator for rapid troubleshooting
- DIP-switch configurable for fire panel (Panel mode) or standalone applications (Stand-Alone mode)
- Front panel includes external indicators and secure access:
- External indicators: MAINS present, AUTOMATIC TEST, FAULT
- Lockable front door
- 32 mm diameter knockouts for cable entry
Ordering Information
Product Code
Description
AUX24/5PSU/550
24V 5A Monitored PSU (AS7240.4) in BATCAB-550 with 003 Camlock
Technical specifications
- Intended use: Auxiliary monitored power supply for ancillary fire alarm equipment
- Standard: AS 7240.4 supervised power supply unit
- Battery compatibility: Sealed VRLA batteries, 7–50 Ah
- Internal PSU: 24/5PSUV2-7240 (used in this 5A unit)
- ActivFire Certificate: afp - 3865
- Dimensions: 350 H x 575 W x 190 D mm
- Battery compartment: 200 H x 400 W x 170 D mm
- Weight (excl. batteries): 7.0 kg
- Indicators: External indicators for MAINS present, AUTOMATIC TEST, FAULT
- Access: Lockable front door
- Cable entry: 32 mm diameter knockouts
- Diagnostics: Internal 7-segment fault indicator
- Configuration: DIP-switch selectable Panel mode or Stand-Alone mode
- Fault handling: Automatic fault supervision
- Supply capability: Able to supply full system load without batteries
