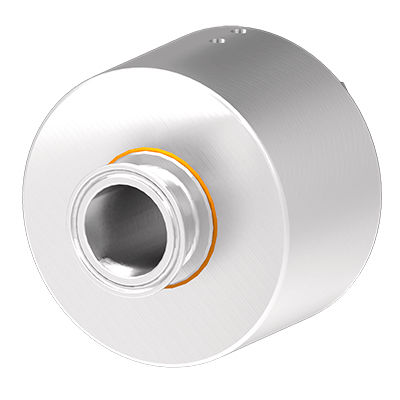

Water rotary union SCS(M) 608010

for airfor oilfor gas

The SCSM Series rotary unions feature tri-clamp ferrule connections and an FDA approved design for use with CIP (Clean-in-Place) systems. The SCSM Series are engineered to minimize fluid stagnation points with smooth flow lines for clean fluid transfer. Specialized bearings are located in a sealed chamber designed keep lubricants in and contaminants out. The SCSM series feature food grade seals and bearing lubricant. Advantages Long oprating lifetime Permanent lubrication bearings CIP capability Benefits Avoid the need of complex piping arrangements Increased machinery performances Paiping maintenance mitigated Type - Sanitary Tri-clamp Passages - 1 passages Tri Clamp - DN32 Overall Diameter - 112,8 mm Overall length - 117,9 mm Min Torque - 4,52 Nm Passage Size - 34,8 mm Maximum Pressure 1 - 1.5 MPa (15 bar) Maximum Vaccum 1 - 24 HG Max Speed 1 - 75 rpm Temperature Range 1 - -18°C à 105°C 2
