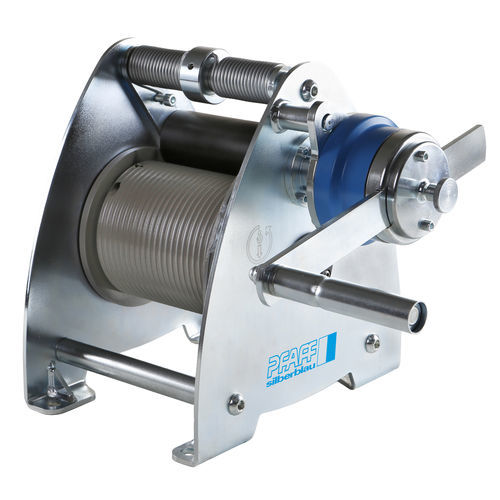

Manual winch SW-K LAMBDA series
wire ropecompactgear

manual winch
manual winch
Add to favorites
Compare this product


Characteristics

Operation
manual
Type
wire rope
Other characteristics
compact, gear, rotary drum
Capacity

300 kg
(661.4 lb)

Cable diameter

6 mm
(0.24 in)

Cable length

Min.: 10 m
(32'09" )

Max.: 50 m
(164'00" )

Weight

30 kg, 36 kg
(66.139 lb, 79.366 lb)

Description

The console-mounted wire rope SW-K LAMBDA DGUV V17/18 (BGV C1) was developed for use in shopping galleries, churches, sports facilities and performing areas (stages, studios, theaters etc.). Equipment and processing • Modern design with galvanised sides for simple handling • Grooved drum for single-layer coiling of the steel rope • Long service life of the rope by 18-fold drum diameter • With spring-loaded rope pressure roller against the jump of the unstressed rope at the drum • Gearbox design for double nominal load • Smoothly running spur gear for high efficiency • Attached safety crank with two spring brakes acting independently of each other for safe hold of the load in any position • optional drum extension or special grooving possible Options • Drum extension for a larger rope intake • Special grooving (multiple ropes

VIDEO
