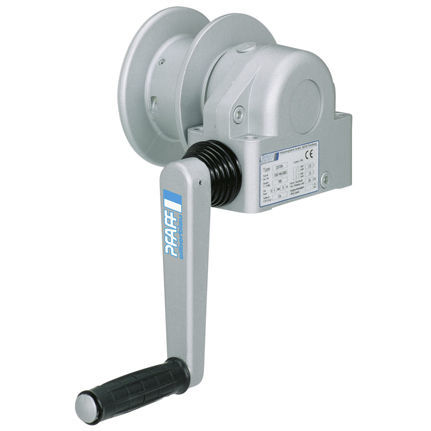

Gear winch SW-KAL seriesmanualwire ropelifting
Add to favorites
Compare this product
Characteristics
- Operation
- manual
- Type
- wire rope
- Application
- lifting
- Other characteristics
- compact, gear, worm gear
- Capacity
750 kg, 1,120 kg
(1,653.47 lb, 2,469.18 lb)- Cable diameter
6 mm, 7 mm
(0.24 in, 0.28 in)- Cable length
0.5 m, 1.3 m, 10 m
(1'07" , 4'03" , 32'09" )- Weight
7 kg
(15.432 lb)
Description
Suitable for mounting on vehicles and trailers as well as lifting and lowering loads, simple and quick attachment.
The aluminium console-mounted rope winch SW-KAL with drum free-wheeling is used for setup on vehicles and trailers as wll as for lifting and lowering loads.
Equipment and processing
• Self-locking worm gear
• Drum free-wheeling for direct pulling off of the wire rope from the drum when there is not tension on the drum
• Closed gear to protect the inner parts, even when in rough use
• Low-friction shaft bearings for a longer life of the rope winch
• Simple and quick attachment
