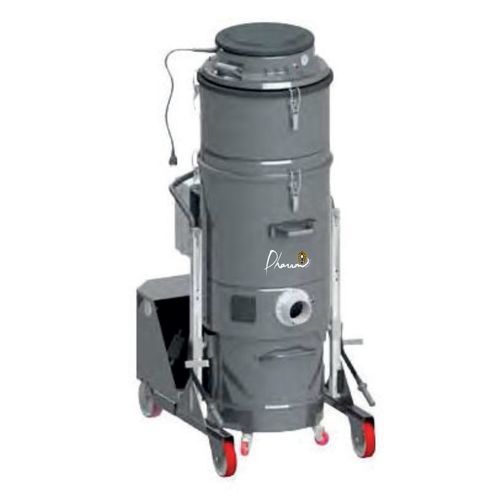

Industrial vacuum cleaner DM3PN 3BP

dryfor asbestosdust

Summary
Industrial vacuum cleaner ideal for floor treatment, suited to fine dust.

Overview
The industrial vacuum cleaner DM3PN 3BP is a compact, powerful and mobile solution designed for intensive extraction of fine and airborne dust on construction sites, in workshops and production environments. Particularly adapted to floor treatment, construction and building sectors, it combines high suction performance, ergonomic handling and industrial-grade filtration.

Main features

• Design and mobility: compact and mobile, epoxy-painted steel chassis, industrial wheels and an ergonomic push handle for easy transport.
• Drive and power: equipped with three independent single-phase by-pass motors allowing adjustable power; total power 3.45 kW.
• Suction performance: maximum vacuum 2,500 mmH2O and airflow up to 540 m³/h.
• Cooling: each motor has a dual-ventilation cooling system for prolonged and safe operation.
• Primary filtration: three PTFE-treated polyester filter cartridges, class M, providing a total filter surface of 57,000 cm² and enhanced resistance to clogging.
• Filter cleaning: automated pneumatic reverse-flow cleaning system, timed and adjustable to maintain continuous performance.
• Absolute filtration (option): HEPA H14 filter (26,000 cm²) available as an option, filtering up to 99.995% of particles at 0.18 micron, suitable for hazardous dusts (silica, asbestos, etc.).
• Collection systems: 60 L recovery tank on wheels for common dry waste or Longopac tubular bag system of 20 m (≈50 fill cycles) to minimize contact and particle dispersion.
• Handling ergonomics: pneumatic cylinder to vary height for easier transport and emptying.
• Power supply: single-phase, easy to integrate on sites and workshops without complex electrical configuration.
• Typical applications: cleaning concrete, plaster and cement dust; recovery of particles from sanding, slotting, sawing and milling; can be used in a secured configuration for hazardous dust with H14 equipment.

Technical specifications

• Model: DM3PN 3BP
• Number of motors: 3 independent single-phase by-pass motors
• Power (W): 3450
• Voltage (V): 230
• Maximum vacuum (mmH2O): 2500
• Maximum airflow (m3/h): 540
• Capacity (Lt): 60
• Filter surface (cm²): 57 000
• Primary filter: PTFE-treated polyester cartridges, class M
• Absolute filtration (option): HEPA H14 (26 000 cm²) — efficiency up to 99.995 % at 0.18 micron
• Cleaning system: automatic pneumatic reverse-flow, timed and adjustable
• Collection system: 60 L tank on wheels or Longopac (tubular bags 20 m ≈ 50 cycles)
• Construction: epoxy-painted steel
• Mobility / handling: industrial wheels, ergonomic handle, pneumatic cylinder for height variation
• Vacuum family: Industrial
