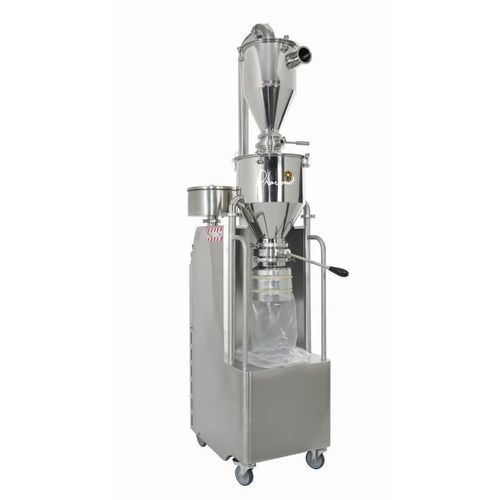

Industrial vacuum cleaner PHARMA 40.40DC

dryhazardous dustfine dust

Description
The PHARMA 40.40DC is a three-phase industrial vacuum designed for the pharmaceutical industry and environments requiring maximum hygienic safety. Designed for continuous operation, it integrates a three-phase side-channel blower 400 V – 4 kW with high-precision dust containment. Its BIBO (Bag In Bag Out) bagging system provides full containment of hazardous dust during disposal. Dust is collected into a sealed, crimpable plastic containment bag for clean, contact-free removal.

Operation and filtration
Filtration is based on an integrated HEPA H14 absolute filter in a filtration chamber, with 99.995% efficiency according to the MPPS method. A high-performance cyclone (> 98 %) is included for optimal particle separation, including ultrafine particles down to 0.18 µm. A clogging monitoring system and a manual de-clogging system maintain constant efficiency.

Construction and materials
The tank, cyclone and hopper are manufactured in AISI316 stainless steel, polished inside and out to promote powder flow and simplify cleaning. The overall frame is reinforced in AISI304 stainless steel, suitable for heavy-duty industrial environments.

Key features

• BIBO (Bag In Bag Out) system: full containment of hazardous dust
• HEPA H14 filtration: 99.995% efficiency (MPPS) on particles down to 0.18 µm
• Integrated cyclone ≥ 98%: optimal particle separation
• Stainless steel tank and structure (AISI316 / AISI304): hygienic and durable
• Sealed, crimpable plastic containment bag for contact-free disposal

Applications
Vacuum dedicated to the pharmaceutical industry for fine dusts, suitable for environments that require a high level of hygienic safety and control of particulate contamination.

Specifications / technical data

• Model: PHARMA 40.40DC
• Blower power: 4 kW (three-phase side-channel blower 400 V)
• Voltage: 400 V
• Maximum vacuum: 3 200 mmH2O
• Nominal air flow: 420 m³/h
• Tank capacity: 30 L
• Noise level: 70 dB(A)
• Filter surface: 20 000 cm²
• Primary filter: ANT M
• Absolute filtration: HEPA H14 (99.995% according to MPPS)
• Separation system: high-performance cyclone (> 98%)
• De-clogging system: manual
• Materials: tank/cyclone/hopper in polished AISI316 stainless steel; frame in AISI304 stainless steel
• Weight indicated on product sheet: 160 kg (page metadata: 120 kg)
• Bagging system: BIBO (Bag In Bag Out) with sealed, crimpable plastic containment bag
