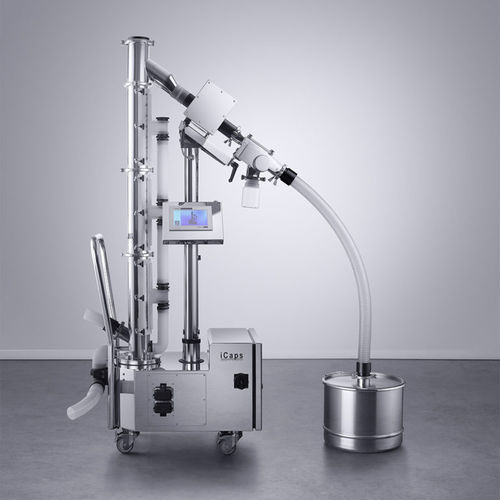

Medical polishing machine iCaps DT

automaticbrush

The iCaps range is based on a new generation of modular segments of 400mm. Each section includes a patented rotational brush, specifically designed to elevate, dedust and polish any size and shape of capsules, from 000 to 5. Key benefits Constant high-performing polishing with patented brush 100% emptying with all capsule sizes and weights Integrated CEIA or LOCK metal detector Closed connections for dust free ≤OEB2 operation Modular sections for adjustable conveying heights Centralized HMI control with optional 21 CFR Part 11 compliance cGMP design, easy to handle & wash Modular conveying for any process layout The system is available in four conveying heights—1000, 1400, 1800, and 2200 mm—each equipped with a rotating module that elevates, dedusts, and polishes capsules from size 00 to 5. This modularity ensures smooth integration into a wide range of production setups. Patented technology for superior polishing A uniform vacuum flow delivers high polishing efficiency, while a unique aspiration window design guarantees complete emptying for all capsule types. The streamlined construction minimizes parts, eliminates the need for tools, and makes assembly and cleaning fast and straightforward. Dust-tight and scalable containment options Compatible with Ceia or Lock metal detectors, the DT (Dust Tight) configuration reduces operator exposure to dust and product. The system can also be upgraded to “C” Containment or “HC” High-Containment washable versions to match evolving process requirements.
