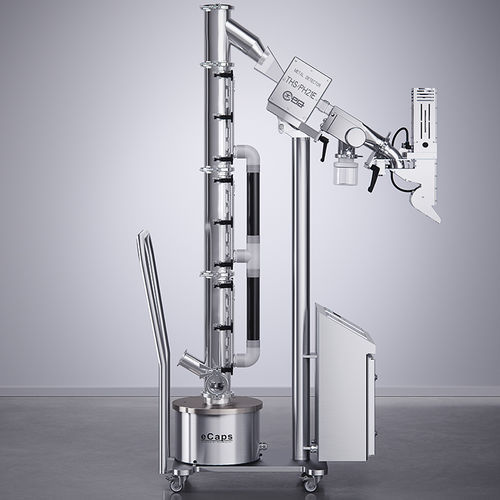

Medical polishing machine eCaps

brushdrum

Overview
Designed for efficient capsule finishing in production environments, the eCaps is an open-design capsule polisher with modular 400 mm segments. It supports capsule sizes 000 to 5 and can be integrated with metal detection, empty-capsule elimination and drum loading systems to fit varied line configurations.

Key benefits

• Consistent polishing using a patented rotating brush module
• 100% self-emptying across capsule sizes and weights
• Compatible with CEIA, LOCK or SAFELINE metal detectors
• Modular sections enabling three conveying heights (1000 / 1400 / 1800 mm)
• cGMP-oriented design for straightforward handling and cleaning

Modular elevation and polishing
The eCaps is built from 400 mm modular segments, each containing a patented rotating module that elevates, dedusts and polishes capsules (sizes 000–5). Full interchangeability between polishing segments allows rapid reconfiguration to match layout and throughput needs.

High-efficiency vacuum flow
A homogeneous vacuum flow and a purpose-designed aspiration window ensure high polishing performance and complete emptying for varied capsule shapes. The simplified, tool-free assembly reduces parts count for faster assembly, dismantling and cleaning.

Integrated metal detection
The compact stainless-steel frame minimizes footprint and retention zones while accommodating Ceia, Lock or Safeline metal detectors. The integration provides high detection accuracy combined with a fast reject mechanism to protect product quality.

Technical specifications

• Elevation heights: 1000, 1400, 1800 mm
• Packaging: Wooden box
• Net weight: 170 kg
• Floor dimensions: 480 mm × 760 mm
• Inlet height: 514 mm
• Available metal detectors: Lock Insight; Ceia THS/PH21 EE
• Outlet chute: TC ASME BPE 2.5"; TC ISO 1127 DN50
• Head opening: 100 mm × 40 mm (CE); 98 mm × 35 mm (LI)
• Accuracy stainless steel: 0.50 mm
• Accuracy ferro: 0.30 mm
• Accuracy non-ferro: 0.35 mm
• Minimum product size: Caps 5
• Maximum product size: Caps 000
• Conveying adjustment: Brush rotation speed
• Self emptying: Yes
• Required air extraction: Adjustable 110–150 m3/h — pressure drop 150–2000 Pa
• Dust extraction connection: TC ISO 1127 DN50
• Required compressed air: N/A or 350 l/min — min. 4.5 bar
• Compressed air connection: Ø 8 mm
• Power supply: 110 V to 230 V ±10%
• Frequency: 50 Hz / 60 Hz
• Noise level: <68 dB(A)
• Operating temperature: 15–25 °C
• Maximum relative humidity: 60%
• Containment level: Open design
• Non-metallic contact parts: POM C — Nylon — Silicone
• Metal contact parts: Stainless Steel 316L
• Contact parts finishing: Ra ≤ 0.8 µm
• Frame parts: Stainless Steel 304
• Frame finishing: Brushed 320
• Frame mounted on wheels: Yes
• IQ-OQ protocol: Available
• Material certificates: Available
• Product type: Capsule
• Function: Polishing; Metal detection
• Application area: Manufacturing
• Product range: eRange
