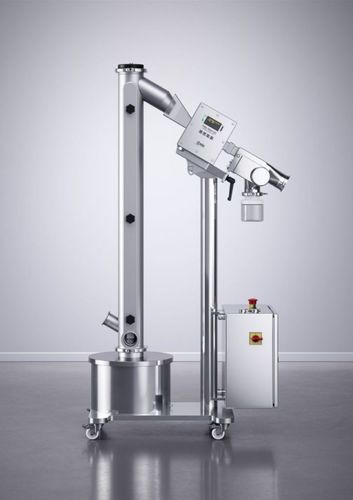

Medical polishing machine NutraCaps

brushdrum

Description
Designed for nutraceutical production, the NutraCaps is a capsule polishing machine with a cGMP-oriented design for easy cleaning and tool-free handling. It can be integrated with an empty capsule eliminator, drum loading systems and an optional CEIA metal detector to fit production lines.

Key benefits

• Consistent polishing performance with patented rotating brush
• Reliable 100% emptying across all capsule sizes and weights
• Optional CEIA THS/PH21 EE metal detector integration
• Tool-free handling and quick changeovers for mixed production
• Easy to wash design suitable for cGMP environments

Operational highlights
Capsules are fed, cleaned and polished within seconds by the rotating brush while an efficient dust extraction system removes powder excess immediately. The compact footprint and wheel-mounted frame facilitate line integration and fast relocation.

Specifications (organized)
Physical properties
Packaging: Wooden box
Net weight: 170 kg
Floor dimensions: 480 mm x 755 mm
Inlet height: 459 mm
Elevation height: 1000 mm

Metal Detection
Available metal detector: CEIA THS/PH21 EE
Outlet chute: TC ASME BPE 2,5"
Head opening: 100 mm x 40 mm (CE)
Accuracy stainless steel: 0,50 mm
Accuracy ferro: 0,30 mm
Accuracy non-ferro: 0,35 mm

Capacity
Minimum product size: Caps 5
Maximum product size: Caps 000

Utilities
Conveying adjustment: Brush rotation speed
Self emptying: Yes
Requested air extraction: Adjustable 110 - 150 m3/h (pressure drop 150 - 2000 Pa)
Dust extraction connection: TC ISO 1127 DN50
Requested compressed air: N/A or 350 l/min - Min. 4,5 bar
Compressed air connection: Ø 8 mm
Power supply: 110 V to 230 V ± 10 %
Frequency: 50 Hz / 60 Hz

Environment
Noise level: <68 dB (A)
Operating temperature: 15 - 25 °C
Maximum relative humidity: 60%
Containment level: Open design

Material
Inlet chute: TC ISO 1127 DN50
Non-metallic contact parts: POM C - Nylon - Silicone
Metal contact parts: Stainless Steel 316L
Contact parts finishing: Ra ≤ 0,8 µm
Frame parts: Stainless Steel 304
Frame finishing: Brushed 320
Frame mounted on wheels: Yes
IQ-OQ protocol: Available
Material certificates: Available

Application
Function: Polishing; Metal detection (optional)
Product type: Capsule
Application area: Manufacturing
Product range: NutraRange

Technical specifications

• Model name: NutraCaps
• Brand: Pharma Technology
• Function: Polishing; Metal detection (optional)
• Product type: Capsule
• Application area: Manufacturing
• Product range: NutraRange
• Minimum product size: Caps 5
• Maximum product size: Caps 000
• Conveying adjustment: Brush rotation speed
• Self emptying: Yes
• Requested air extraction: Adjustable 110 - 150 m3/h (pressure drop 150 - 2000 Pa)
• Dust extraction connection: TC ISO 1127 DN50
• Requested compressed air: N/A or 350 l/min - Min. 4,5 bar
• Compressed air connection: Ø 8 mm
• Power supply: 110 V to 230 V ± 10 %
• Frequency: 50 Hz / 60 Hz
• Noise level: <68 dB (A)
• Operating temperature: 15 - 25 °C
• Maximum relative humidity: 60%
• Inlet chute: TC ISO 1127 DN50
• Outlet chute: TC ASME BPE 2,5"
• Head opening: 100 mm x 40 mm (CE)
• Non-metallic contact parts: POM C - Nylon - Silicone
• Metal contact parts: Stainless Steel 316L
• Contact parts finishing: Ra ≤ 0,8 µm
• Frame parts: Stainless Steel 304; Frame finishing: Brushed 320
• Frame mounted on wheels: Yes
• IQ-OQ protocol: Available; Material certificates: Available
• Packaging: Wooden box
• Net weight: 170 kg
• Floor dimensions: 480 mm x 755 mm
• Inlet height: 459 mm; Elevation height: 1000 mm
• Accuracy stainless steel: 0,50 mm; Accuracy ferro: 0,30 mm; Accuracy non-ferro: 0,35 mm
