Optical data cable LD80industrialsingle-modemultimode
Add to favorites
Compare this product
Characteristics
- Type
- data
- Applications
- industrial
- Other characteristics
- single-mode, multimode, high-power
- Temperature
Max.: 350 °C
(662 °F)Min.: -40 °C
(-40 °F)
Description
The high power delivery fiber cable is individually designed for specific application. Different fiber core diameter, connector and protection tubing are available.
- Temperature range: -40°C to 350°C
- Single mode or multimode fiber
- Wavelength range: 350nm - 2300nm
- Fiber core diameter: 10µm - 1000µm
- Numerical aperture: 0.10 - 0.49

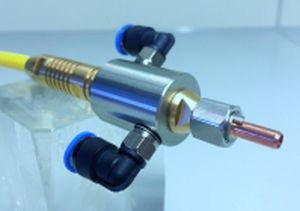

LD80 compatible connector water cooling
- Active water cooling
- Ferrule diameter: 4mm
- Free-standing fiber tip
- Power: up to 1kW
- Options: key, thermistor, endcap, mode stripper
