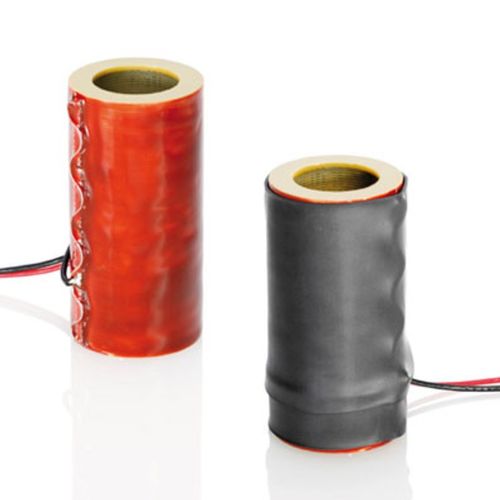

Linear piezoelectric actuator P-0 series

0 V...10 V10 V...50 V101 V...300 V

High-Load Piezo Actuators with Inner Hole • High load capacity • Extreme reliability: >109 cycles • Microsecond response • Subnanometer resolution • Large choice of designs Stacked piezo linear actuator Operating voltage 0 to 1000 V. Long lifetime without derating. High specific displacement. A mechanical preload can be attached via inner holes Available options • SGS sensors for positional stability • PZT ceramic material • Operating voltage range, displacement, layer thickness • Load capacity, force generation • Geometric shapes: round, rectangular, various cross sections • Mechanical interface: flat • Integrated piezoelectric detector layers • Special high / low temperature versions • UHV-compatible versions up to 10-9 hPa • Non-magnetic versions • Extra-tight length tolerances Fields of application Industry and research. For optics, precision mechanics and machining, laser tuning
