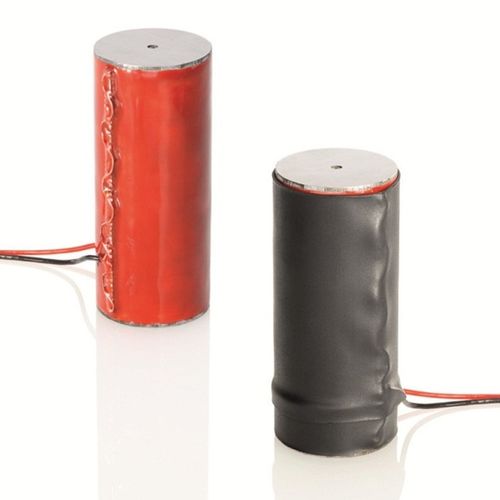

Linear piezoelectric actuator P-0 series

0 V...10 V10 V...50 V101 V...300 V

High Forces, High Displacement, Flexible Production • Travel ranges to 300 µm • High load capacity • Force generation up to 80 kN • Extreme reliability: >109 cycles Stacked piezo linear actuator Operating voltage 0 to 1000 V. Long lifetime without derating. High specific displacement. High forces. Sub-nanometer resolution, µs response. Operating temperature range -20 to 85 °C Available options • SGS sensors for positional stability • PZT ceramic material • Operating voltage range, displacement, layer thickness • Load capacity, force generation • Geometric shapes: round, rectangular • Mechanical interfaces: flat, spherical, metal, ceramic, glass, sapphire, etc. • Integrated piezoelectric detector layers • Special high / low temperature versions, temperature sensor • Vacuum-compatible and non-magnetic versions • Extra-tight length tolerances Fields of application Industry and research. For high-load positioning, precision mechanics / -machining, switches
