Piezo amplifier E-836 series
powerlow-noisebenchtop

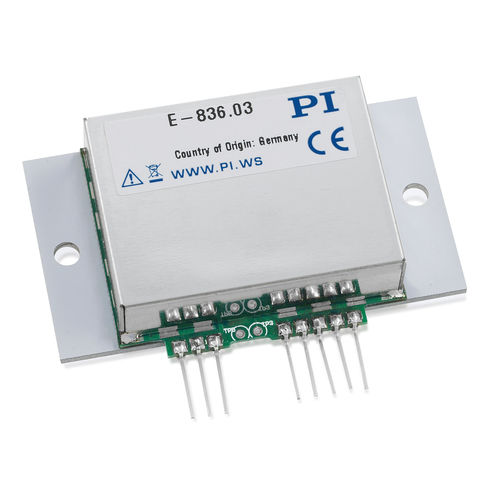

Piezo amplifier - E-836 series - PI Ceramic GmbH - power / low-noise / benchtop
Piezo amplifier - E-836 series - PI Ceramic GmbH - power / low-noise / benchtop
Piezo amplifier - E-836 series - PI Ceramic GmbH - power / low-noise / benchtop - image - 2
Add to favorites
Compare this product

Characteristics

Type
power
Other characteristics
low-noise, benchtop, piezo, compact, for piezo-electric actuators, OEM, single-channel
Voltage

Max.: 130 V

Min.: -30 V

Current

Max.: 100 mA

Min.: 50 mA

Description

Cost-Effective, Low-Noise Piezo Amplifiers for Dynamic Piezo Actuator Operation • OEM module and benchtop device • Easy integration • Power on/off without voltage spikes Functions Low-noise power amplifier. Gain value 10. Output voltage range -30 to 130 V. Short-circuit proof, full overcurrent and overtemperature protection. Single-channel piezo amplifier: OEM module or benchtop device Compact OEM module in shielded metal housing; easy integration with soldering pins for mounting on boards; ideally suited for assembling multi-channel solutions. Benchtop device for laboratory applications and fast startup. 24 V operating voltage, piezo voltage and other supply voltages are generated internally. Fields of application Inexpensive control of PICMA® Stack or PICMA® Chip piezo actuators in OEM applications.
