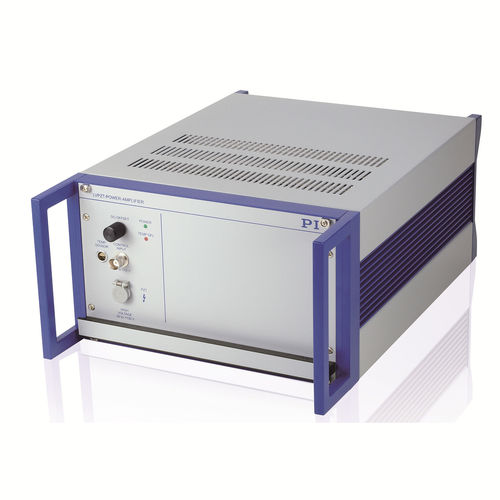

Piezo amplifier E-618 seriespowerfor piezo-electric actuatorshigh-power
Add to favorites
Compare this product
Characteristics
- Type
- power
- Other characteristics
- high-power, piezo, for piezo-electric actuators
- Voltage
Max.: 130 V
Min.: -30 V
- Current
Max.: 20 A
Min.: 0.8 A
- Power
Max.: 3,200 W
Min.: 100 W
Description
High Currents, High Dynamics
• Peak current 20 A
• Rise times in the microsecond range
• 15 kHz bandwidth for high dynamics applications
• Overheat protection for piezo actuators with temperature sensor
Piezo amplifier module for particularly fast rise times
High peak current, 0.8 A continuous current. High bandwidth for high dynamics. Suitable for PICMA® piezo actuators with special contacts. Output voltage -30 to 130 V. Analog control. Evaluation of temperature sensor protects the piezo actuator against overheating.
Optional servo controller upgrade
Optional E-509 control module for strain gauge sensors. Optional E-518 interface module with wave generator, data recorder, digital interfaces. Optional accessories: NI LabVIEW driver set E-500.ACD for D/A converter boards from National Instruments
Application fields
• Fast switching applications in valves or pumps
• Microstructure analysis
• Active vibration absorber
