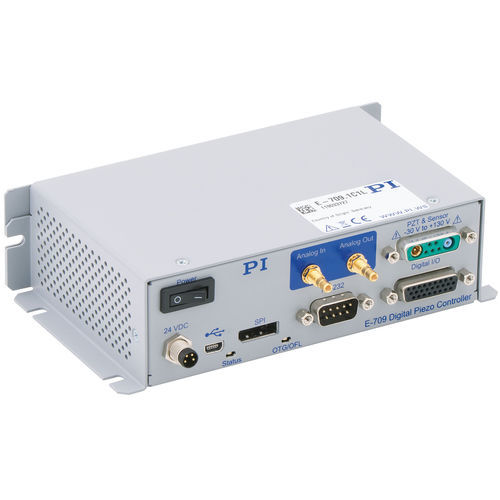

Digital motion controller E-709.1C1L

1-axispiezoelectricfor sensors

Cost-optimized, high-performance controller For piezo-based single-axis nanopositioning systems with capacitive sensors. Output voltage -30 to 130 V. Amplifier and sensor evaluation optimized for dynamic applications. Digital linearization. Digital servo controller can optionally be combined with profile generator and position feedforward control. Wave generator. Data recorder. Autozero. Trigger I/O. Supports all current ID chips from PI. Compact design with functional blocks for an easy derivation of OEM versions. Safety and monitoring functionalities Overtemperature protection for amplifier and sensor electronics. Short-circuit proof. Continuous, hardware-based measurement of input and output values such as voltage and current as well as internal temperature. High-frequency measurements for static and dynamic evaluation. Remote diagnostics possible thanks to specific query and recording of values. Software interfaces Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. Compatible with µManager and MetaMorph. PIMikroMove user software.
