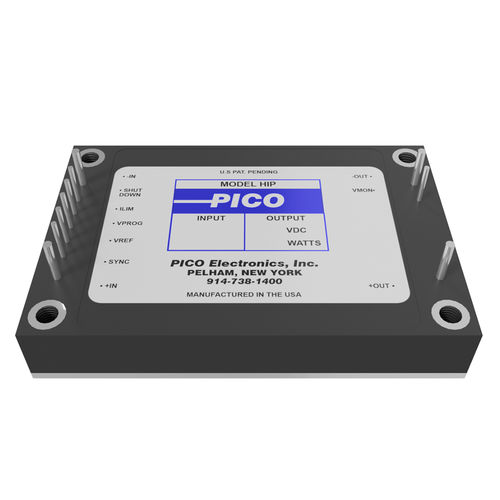

High-voltage DC-DC converter HIP series

regulatedencapsulatedmetal package

The HIP series of fully regulated modules are 10% to 100% output voltage programmable by internal reference or external voltage. These modules have an adjustable current limit, voltage monitor, shutdown and operating frequency synchronization features. Protections include input over/undervoltage, output short-circuit, and over temperature. The 3″ x 2″ x 0.5″ case size has threaded inserts to mount securely for high vibration and shock applications. Conduction cooling is available through the baseplate or compatible heat sink. Features 10-100% programmable output feature Compact 3” x 2” x 0.5” case size 2:1 input voltage range Protected against input over/undervoltage, output short-circuit, and over temperature Frequency synchronization feature Adjustable output current limit feature Shutdown feature Output voltage monitor feature Options Expanded operating temp: -40°C to +85°C Select screening per MIL-STD-883: Stabilization Bake: Ref. Method 1008 Temperature Cycle: Ref. Method 1010 Burn-In: Ref. Method 1015 Special Input Voltage, Output Voltage, Isolation Voltage or Output Power
