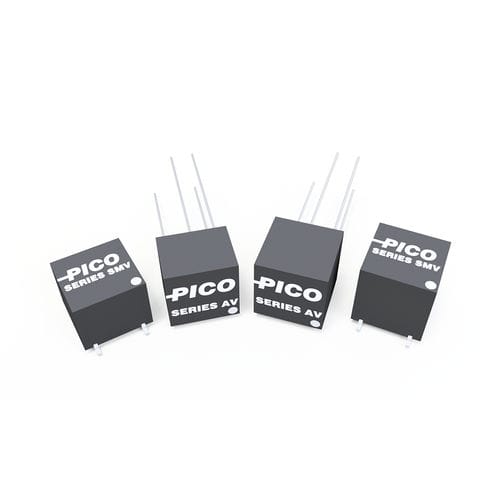

Encapsulated DC/DC converter 5SMV900

encapsulated DC/DC converter
encapsulated DC/DC converter
Add to favorites
Compare this product


encapsulated, plug-in
Electrical characteristics
Other characteristics
insulated, ultra-miniature
Input voltage

5 V, 12 V, 15 V, 28 V

Output voltage

600 V, 700 V, 800 V, 900 V, 1,000 V


1.25 W


This series of unregulated high voltage DC-DC converters are produced in an ultra-miniature encapsulated package. 40 different models are available. These single output isolated units will operate over the temperature range of -25º C to +70º C with no heat sink or electrical derating. For military applications an operating temperature range -55º C to +85 º C is available. An optional environmental screening package per MIL-STD-883 is also available. FEATURES 1.25 watt output at 70º ambient Ultra-miniature size 0.500" height, 5.0 grams weight, 0.125 cubic inches volume 100 megohm @ 1500 VDC input/output isolation MIL-STD 883 options available No heat sink or electrical derating required OPTIONS AVAILABLE Per Mil. Std. 883 Expanded operating temp. (-55º C to +85º C) Stabilization Bake (125º C amblent) Temperature Cycle (-55º C to +125º C) Hi Temp, burn TYPICAL CHARACTERISTICS: Test conditions: 25º C ambient and input voltage at nominal value unless otherwise specified. LINE REGULATION: OUTPUT IS DIRECTLY PROPORTIONAL TO THE INPUT. Input voltage range: ±10% all models Output voltage tolerance at full load-nom. Input: ±3% Please keep loaded to minimum of 10% at all times. Note: For tighter output voltage tolerances, please consult factory. Converter frequency: 20 - 40 KHz Output temperature coefficient: 0.02%/ºC for all models Operating temperature: -25º C to +70º C ambient. No heat sink is required. Storage temperature: -55º C to +125º C Isolation: 100 Megohms @ 1500 VDC


No catalogs are available for this product.

See all of Pico Electronics‘s catalogs
