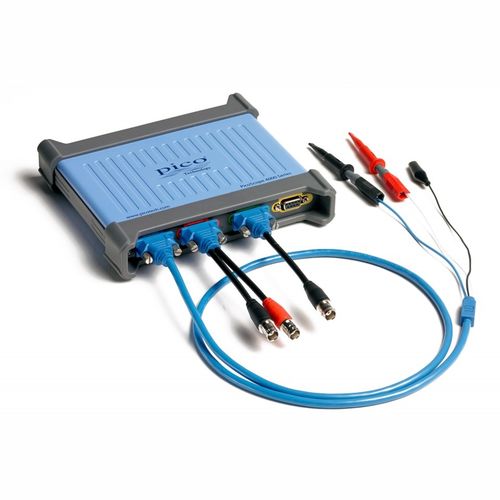

High-resolution oscilloscope PicoScope 4444

differentialportable4-channel

High-resolution differential USB oscilloscope The PicoScope 4444 and its accessories offer accurate and detailed measurement for a multitude of applications. Key features • 4 fully differential high-impedance inputs • 20 MHz bandwidth • Flexible 12 and 14-bit resolution • 256 MS deep memory • Rejects common-mode noise • Interface for intelligent probes and clamps • Low-voltage probe for millivolts to 50 V • 1000 V CAT III voltage and current probes for mains measurement applications Typical applications • Non-ground-referenced measurements • Safe probing of single-phase and three-phase voltages and currents • Measuring power drawn by mobile and IoT devices • Mains quality testing • SMPS design • Hybrid and electric vehicle design • Motor drives and inverters • Biomedical electronics • Measuring differential signals (CAN, balanced audio) with a single channel High-end oscilloscope At the heart of every PicoScope 4444 is an advanced oscilloscope that offers everything you would expect and much more, including: • 10 000 waveform circular buffer • Up to 100 000 waveforms per second update rate • Serial bus decoding • Mask limit testing • Advanced math and filtering • Measurements with statistics • Advanced digital triggering • USB 3.0 connected and powered
