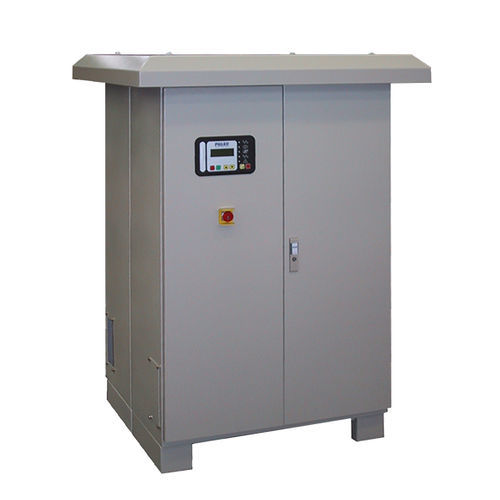

Electrical power supply transformer AJT
immersedclosedK-factor

electrical power supply transformer
electrical power supply transformer
Add to favorites
Compare this product


Characteristics

Type
electrical power supply
Configuration
immersed
Other characteristics
closed, K-factor, pad-mount
Electric power

Max.: 180 kVA (244.7318 hp)

Min.: 90 kVA (122.3659 hp)

Description

Gatebox APOJET AJT 90 to 180 kVA The APOJET AJT step down transformer (Gatebox) is designed to step down the high 400Hz transmission voltage supplied by a centralised Ground Power System. The system can be installed either on the apron or beside a boarding bridge. It is also available as a two-cabinet version. Using the latest state-of-the-art technology and newest trends in the power electronics field and digital control, the APOJET AJT offers the best solution for aircraft ground power supply systems. Rating 90 to 180 KVA electronically regulated output voltage (by thyristors) fully-controlled by microcontrollers remote voltage sensing high degree of user-friendliness interface for remote control and centralised control / indication, PC or modem connection special earth leakage protection up to 12% automatic line drop compensation

Catalogs
