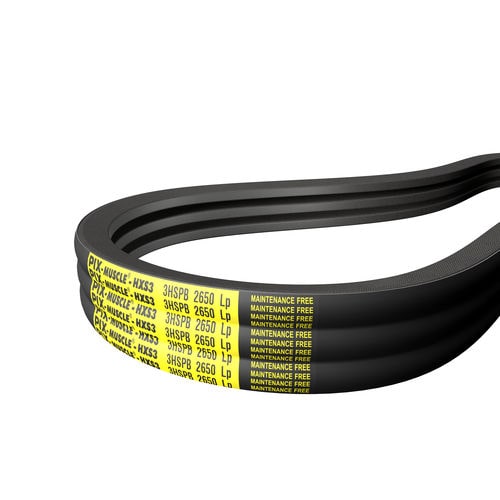

Maintenance-free power transmission belt PIX-Muscle ®-HXS3ribbedVrubber
Add to favorites
Compare this product
Characteristics
- Type
- ribbed, V
- Material
- rubber
- Product applications
- for heavy-duty applications, for generator sets, for pumps, for food industry machinery, for conveyor rollers, for heat exchangers, aircraft engine, furnace, power plant, for hot rolling mills
- Sector
- industrial, for the textile industry, for the automotive industry, for the food industry, medical
- Other characteristics
- anti-static, high-performance, high-power, for heavy loads, wrapped, high wear resistance, maintenance-free, banded, oil-resistant, heat-resistant, high temperature-resistant
- Length
Min.: 889 mm
(35 in)Max.: 23,629 mm
(930.28 in)- Width
Min.: 10 mm
(0.394 in)Max.: 25.4 mm
(1 in)- Thickness
Min.: 10 mm
(0.39 in)Max.: 25 mm
(0.98 in)- Pitch
Min.: 12 mm
(0.472 in)Max.: 28.6 mm
(1.126 in)- Temperature
Min.: -25 °C
(-13 °F)Max.: 100 °C
(212 °F)
Description
Features
Superior power transmission capacity up to 60% more than the standard single Belts
Specially engineered cord for maintenance-free operation
Superior compound design for high thermal resistance and extended service life
Top curvature provides superior adhesion and accelerate heat dissipation rate
Controlled radial and lateral run-out facilitates smooth operation
Anti-static oil and heat resistance
REACH & RoHS compliant, provides an eco-friendly system
Temperature range: -25°C to +100°C
Constructional Details
High wear resistant outer jacketing for excellent grip and strength
Specially treated premium cord for negligible elongation, best suited for maintenance-free operation
Special fibre loaded compound for high power transmission and extended temperature resistance
