DIN rail power supply unit PWR series
DCsingle-outputwith overload protection

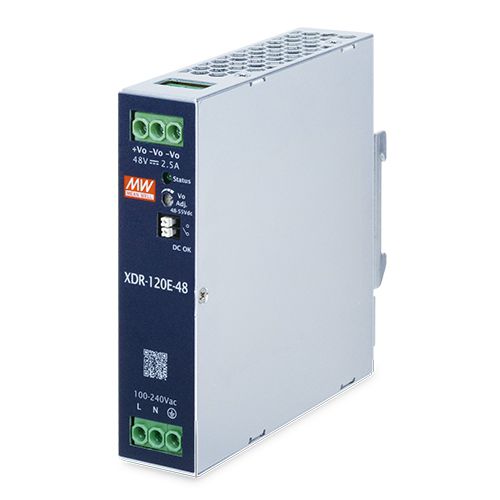

DIN rail power supply unit - PWR series - PLANET Technology Corp. - DC / single-output / with overload protection

DIN rail power supply unit - PWR series - PLANET Technology Corp. - DC / single-output / with overload protection - image - 2

DIN rail power supply unit - PWR series - PLANET Technology Corp. - DC / single-output / with overload protection - image - 3

DIN rail power supply unit - PWR series - PLANET Technology Corp. - DC / single-output / with overload protection - image - 4

DIN rail power supply unit - PWR series - PLANET Technology Corp. - DC / single-output / with overload protection - image - 5

Add to favorites

Compare this product

Characteristics

Mounting / format

DIN rail

Type

Output

single-output

Protection

with overload protection, with short-circuit protection

Applications

for industrial applications

Other characteristics

compact

Input voltage

Max.: 370 V

Min.: 85 V

Output voltage

48 V

Current

1.6 A, 2.5 A, 5 A, 10 A, 20 A

Power

75 W, 120 W, 240 W, 480 W, 960 W

Output frequency

50 Hz, 60 Hz

Description

PLANET has released a series of DC single output industrial DIN-rail power supply units to make sure that industrial Ethernet devices, specially designed for the harsh working environment, get DC voltage power easily. PLANET DC single output industrial DIN rail power supply units accept universal 100-240V AC input voltage and provide 48V DC power output with various watt values. Its power supply units are designed in compact size and can be installed on DIN rail TS-35 / 7.5 or 15. It is an ideal and convenient DC power feeding solution for Industrial equipment under heavy Industrial environments. Stable Performance under Difficult Environments PLANET DC single output industrial DIN-rail power supply units come with such protection features as short circuit, overload, over voltage and over temperature for the stable operation of industrial Ethernet equipment. It uses the free air convection cooling system to prevent operating temperature from rising. Being able to operate under the temperature range from -40 to 70 degrees C (maximum), the DC single output industrial DIN-rail power supply units can be placed in almost any difficult environments.
