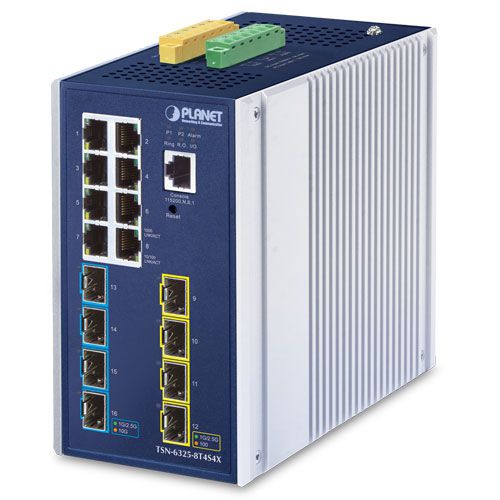

Managed ethernet switch TSN-6325-8T4S4X

8 portslayer 35G

PLANET TSN-6325-8T4S4X is a brand-new Industrial-grade Layer 3 Time-Sensitive Networking (TSN) Managed Ethernet Switch which features 8 10/100/1000BASE-T RJ45 ports, 4 1G/2.5GBASE-X SFP ports and 4 10GBASE-SR/LR SFP+ ports and Layer 3 IP routing in a rugged IP30 metal case for stable operation in heavy environments, address all levels of the industrial automation network, from the field bus to the factory backbone. And it guarantees end-to-end transmission of high-priority traffic with extremely low latency. With 10Gbps fiber interfaces, the TSN-6325-8T4S4X can handle extremely large amounts of data in a secure topology linking to an industrial backbone, 5G NR base station or Wi-Fi6/6E wireless AP. The TSN-6325-8T4S4X is capable of providing non-blocking switch fabric and wire-speed throughput as high as 116Gbps in the temperature range from -40 to 75 degrees C. It greatly simplifies the tasks of upgrading the industrial LAN for catering to increasing bandwidth demands. A Simplified Pathway to a TSN-compatible Infrastructure PLANET TSN-6325-8T4S4X provides real-time, low-latency network communication for industrial automation, 5G NR networks, Industry 4.0, 4K/8K video streaming, and VR/AR gaming industry by using the Time-sensitive Networking (TSN) technology and IEEE 1588 Precision Time Protocol (PTPv2) for time synchronization on all ports. The TSN-6325-8T4S4X supports TSN IEEE standards needed for a complete real-time communication solution.
