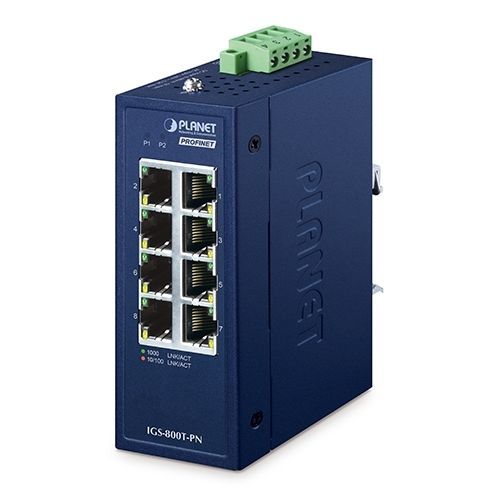

Unmanaged ethernet switch IGS-800T-PN

8 portsgigabit EthernetProfiNet

Compact Size for More Practicability and ConveniencePLANET IGS-800T-PN Compact Industrial 8-Port 10/100/1000T PROFINET Switch, suitable for industrial use, features 8 1000Mbps auto-negotiation ports, IP30-rated rugged but compact case and a wide-ranging redundant power system (9~48V DC or 24V AC). The IGS-800T-PN is able to operate in any harsh environment with operating temperature ranging from -40 to 75 degrees C.As the trend for an IIoT (Industrial Internet of Things) infrastructure continues to grow, the IGS-800T-PN is designed to simplify industrial network deployment with its Plug and Play feature. Beyond offering stable and reliable fast data and power transmission, it also aligns with the AIoT (Artificial Intelligence of Things) vision by enabling seamless integration of intelligent systems. This allows the collection and analysis of valuable data, empowering real-time decision-making and enhancing operational efficiency across various industrial applications.PROFINET Traffic with Higher Delivery PriorityThe IGS-800T-PN is specially designed to support PROFINET Conformance Class A (CC-A), providing industrial users with reliable and real-time Ethernet communication in automation networks, making it ideal for use in factory automation and control applications. It features an enhanced function that recognizes PROFINET traffic and assigns it higher delivery priority. Upon detecting PROFINET packets, the IGS-800T-PN forwards them first before processing other Ethernet traffic. With this capability, the IGS-800T-PN becomes an ideal industrial unmanaged switch for ensuring fast and efficient PROFINET communication.Low Power Consumption for ESG PrinciplesThe IGS-800T-PN adopts the advanced green networking technology that meets the Environmental, Social, and Governance (ESG) principles, providing link-on cable length power-saving and link-down power-saving features. These characteristics enable the IGS-800T-PN to maintain extremely low power consumption even under full-load operation, effectively conserving energy while delivering outstanding performance. Compared to the IGS-801T, using the IGS-800T-PN can save over 50% of energy consumption.With Auto Power Savings and the IEEE 802.3az Energy Efficient Ethernet (EEE) protocol, the IGS-800T-PN can automatically detect cable link status and network traffic, adjusting its power consumption accordingly. When the device activity is lower, the switch consumes less power, achieving higher energy efficiency.Dual Power Input for High Availability Network SystemThe IGS-800T-PN features a strong dual power input system with wide-ranging voltages (9V~48V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-800T-PN via power supply 2 alternatively without any loss of operation.High Switch PerformanceThe IGS-800T-PN offers high-performance switch architecture. With the 8 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 16Gbps and the 4K MAC address table, the IGS-800T-PN can perform wire-speed packet transfer without the risk of packet loss. The flow control function enables the IGS-800T-PN to provide fast and reliable data transfer.Plug and PlayAll of the RJ45 copper interfaces in the IGS-800T-PN support 10/100/1000Mbps auto negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.Flexible and Easy Installation with Limited SpaceThe compact sized IGS-800T-PN is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexible and easier in any space-limited location.Industrial PROFINET Switch Optimized for Automation NetworksPLANET IGS-800T-PN is designed for high-reliability communication in industrial automation environments. It intelligently prioritizes PROFINET traffic to ensure time-sensitive control signals are delivered with minimal delay, making it ideal for use between PLCs, HMIs, sensors, and data acquisition systems. Built with PTCP filtering and enhanced QoS handling, it helps maintain communication precision across automated processes. With dual power inputs and plug-and-play installation, the IGS-800T-PN is a robust solution for smart factories and IIoT infrastructures that demand stable and real-time network performance.Physical Port8-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X functionLayer 2 FeaturesComplies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standardSupports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplexPrevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)High-performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidthSwitching fabric: 16GbpsIntegrated address look-up engine, supporting 4K absolute MAC addressesSupports jumbo frames up to 9K bytesAutomatic MAC address learning and agingSupports CSMA/CD ProtocolCompliant with PROFINET Conformance Class ASupports PROFINET PTCP filter for reliable communication on PROFINET networkSupports PROFINET Traffic Pass-through with QoSIndustrial Case and InstallationIP30-rated compact metal enclosureSupports both DIN-rail and wall-mount installation9~48V DC redundant power input with reverse polarity protection; includes removable terminal block for master and slave power connectionsSupports 24V AC power inputSupports 6000 VDC Ethernet ESD protectionOperating temperature range: -40 to 75°CDesigned to withstand free fall, shock, and vibration in industrial environmentsTechnical SpecificationsCopper Ports: 8 x 10/100/1000BASE-T RJ45 TP auto-MDI/MDI-X, auto negotiationConnector: Removable 4-pin terminal block (Pin 1/2 for Power 1; Pin 3/4 for Power 2)ESD Protection: 6KVEFT Protection: 6KVPower Requirements: 9~48V DC redundant power with polarity reverse protection function, 24V AC power supportPower Consumption / Dissipation: System on: Max. 0.48 watts/1.6BTU; Ethernet Full Loading: Max. 2.88 watts/9.8BTUInstallation: DIN-rail kit and wall-mount earEnclosure: IP30 metal caseDimensions (W x D x H): 41 x 70 x 115 mmWeight: 305gLED: 2 x LED for system and power (Green: DC Power 1/2); 2 x LED for each copper port (Green: 1000Mbps LNK/ACT, Amber: 10/100Mbps LNK/ACT)Switch Processing Scheme: Store-and-ForwardAddress Table: 4K entriesBuffer Memory: 4M bits on-chip buffer memoryFlow Control: Back pressure for half duplex, IEEE 802.3x pause frame for full duplexSwitch Fabric: 16GbpsThroughput (packet per second): 11.9Mpps@64bytesJumbo Frame: 9KbytesNetwork Cables: 10/100/1000BASE-T Cat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters); EIA/TIA-568 100-ohm STP (max. 100 meters)PROFINET Support: Conformance Class A (CC-A), PTCP filter, QoS prioritizationStandards Compliance: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3x Full-Duplex Flow Control, IEEE 802.3az Energy Efficient Ethernet, IEEE 802.1p Class of Service, PROFINET protocolRegulatory Compliance: FCC Part 15 Class A, CEStability Testing: IEC 60068-2-32 (free fall), IEC 60068-2-27 (shock), IEC 60068-2-6 (vibration)PROFINET Conformance Class: Conformance-Class ATemperature: Operating: -40~75°C; Storage: -40~75°CHumidity: Operating: 5~90%, Storage: 5~90% (non-condensing)
