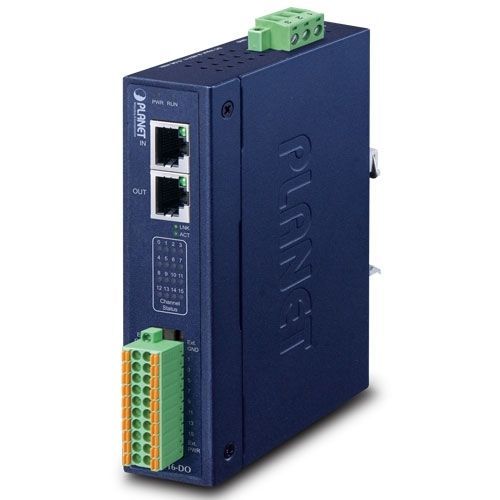

Digital I/O module IECS-1116-DO

EtherCATRJ4516-channel

Powering the Digital Transformation with EtherCATPLANET IECS-1116-DO is an industrial EtherCAT slave I/O module equipped with the EtherCAT protocol for today's distributed industrial applications. The IECS-1116-DO provides high-density digital output channels and is protected with 3750 VDC isolation. Its compact size and DIN-rail mounting make installation in a cabinet easy. Pluggable terminal blocks and LED indicator help users to maintain and set up their system.Flexible InstallationThe IECS-1116-DO is an ideal high-speed distributed system solution which provides quick installation, real-time connection status monitoring, and wide-ranging power input and operating temperature to improve work efficiency, making them suitable for the harsh environment. Besides, the module comes with 2 10/100BASE-TX RJ45 ports. Through the EtherCAT technology, a network of up to 65,535 devices can be supported without the limitation of the type of topology -- line, bus, tree, star or any arrangement -- being used.SynchronizationAn EtherCAT slave is an electronic device that carries out cyclical sequences of calculations and/or data copying tasks at a certain interval (cycle). The EtherCAT slave working cycle (e.g. in the range of a few µs up to several ms) can be derived from different sources. EtherCAT node can measure time difference between leaving and returning frame. With distributed clocks, EtherCAT can realize a precise synchronization time of <1us between each slave module.Convenient and Reliable Power SystemThe IECS-1116-DO is equipped with one 3-pin DC power input connector with screws for power supply installation. With power magnetic protection design, it can avoid the device burnout due to wrong wiring. In addition, it also possesses an integrated power supply source with wide-ranging voltages (9 to 48V DC) for worldwide high availability applications.Environmentally Hardened DesignWith the IP40 metal industrial case, the IECS-1116-DO provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C, the IECS-1116-DO can be placed in almost any difficult environment.Industrial-grade EtherCAT Slave Module for Factory AutomationThe IECS-1116-DO is an EtherCAT slave I/O module with isolated16-ch output for distributed industrial applications. Each module is equipped with high density I/O (up to 16 points) and powerful features in a compact size. DIN-rail design and daisy-chain wiring powered by EtherCAT technology make it easy to install the modules in the field. Besides, the IECS-1116-DO is able to provide a wide variety of I/O combinations with the IECS-1116-DI. With the standard ESI file, users can always find suitable I/O modules for their high-speed EtherCAT-based applications.Built-in isolated 16 digital outputs2 RJ45 bus interfacesLED indicators for the input statusRemovable terminal block connector9 ~ 48V DC wide input voltage range and high output current (700 mA/ch)Supports EtherCAT distributed clock (DC) mode and SyncManager modeEtherCAT conformance test tool verifiedDigital OutputChannels16Output TypeOpen collector (sink)Load Voltage3.5~50VMax. Load Current700 mA per channelPhoto Isolation3750 VDCCommunication InterfaceConnector2 RJ45 portsProtocolEtherCATDistance between StationsMax. 100m (100BASE-TX)Data Transfer MediumEthernet/EtherCAT cable (min. cat5), shieldedPowerInput Voltage Range9~48V DCPower Consumption4W max.MechanicalDimensions (W x D x H)32 x 87.8 x 135mmInstallationDIN-rail and wall mountingCase MaterialIP40 metalEnvironmentOperating Temperature-40~75 degrees CStorage Temperature-40~75 degrees CRelative Humidity5~95% (non-condensing)Ordering Information: IECS-1116-DO - Industrial EtherCAT Slave I/O Module with Isolated 16-ch Digital Output
