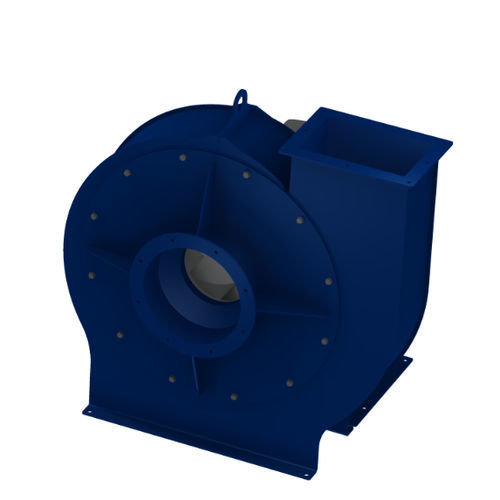

Radial fan WPH400VDC230VAC690 V
Add to favorites
Compare this product
Characteristics
- Configuration
- radial
- Supply voltage
- 400VDC, 230VAC, 690 V
- Material
- steel
- Applications
- motor
- Other characteristics
- flange, high-pressure, explosion-proof
- Air flow
Max.: 11,500 m³/h
(406,118.667 ft³/h)Min.: 1,150 m³/h
(40,611.867 ft³/h)- Diameter
Max.: 350 mm
(13.78 in)Min.: 100 mm
(3.937 in)- Rotational speed
1,500 rpm, 3,000 rpm
(9,425 rad.min-1, 18,850 rad.min-1)- Noise level
Max.: 117 dB
Min.: 91 dB
Description
Radial fans with high pressures and lower capacities. Widely used where pressure is required, i.e. the installation due to the nature of the process creates high resistance.
• Available in figures: Rd 0, 90, 270 and Lg 0, 90, 270
• Air flow temperatures: -20 to +80°C
• Motor operating temperatures: -20 to +50°C
• Installed motor powers: 0.55 – 30kW
• Motors as standard suitable for speed control by a frequency converter.
• Drainage for figures requiring them
• Sophisticated solutions for easy attachment and transportation of the fan to the work site
• Corrosion-protected housing – powder-coated
• Optional executions:
• other shapes than standard, (Rd 45, 135, 180, 225, Lg 45, 135, 180, 225)
• execution form: IM V1 – inlet flange mounting
• in thermal and acoustic insulation
• impellers with flows other than standard
• motors up to 132kW
• explosion-proof
• high temperature max. temp.: +250°C
