- PLASTMAK MACHINE

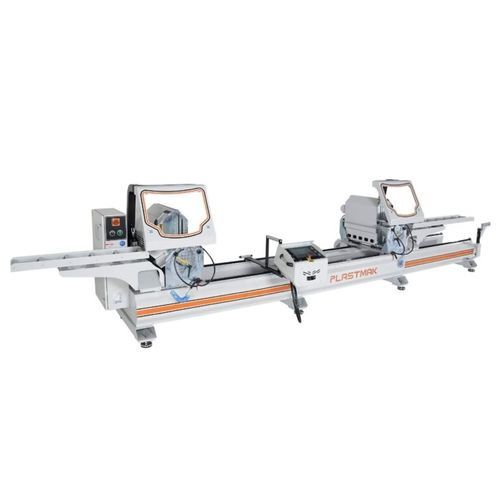

Double-head cutting machine SÇ 4000S PLUSrotary bladefor aluminumfor PVC
Add to favorites
Compare this product
Characteristics
- Technology
- rotary blade
- Material
- for aluminum, for PVC
- Product handled
- profile, door frame, for windows
- Control type
- servo-driven
- Applications
- for construction machinery
- Workpiece loading
- manual loading
- Phase
- three-phase
- Configuration
- double-head
- Other characteristics
- automatic, high-precision, precision, CE, high-performance, high-efficiency, with servo-motor, programmable, high-productivity, 45°, 90°
- Tube diameter
600 mm
(24 in)- Overall length
10 m
(32'09" )
Description
It is a fully automatic controlled cutting machine designed to cut PVC and aluminum profiles straight or at an angle using a double-head Ø 600 mm saw.
-Hydro-pneumatic Hydrocheck controlled saw movement
-Cutting precision +/- 0.1 cm
High precision thanks to the backlash-free reducer
Automatically adjustable to two angles: -90° and 45° inward
-15″ Windows-based industrial PC
-Diamond saw 2x Ø 600 mm
Servo Motor Motion System
-21.5 cm Saw Exit Distance and 70mmx3 profile Cutting Capacity
-Hydrochek Saw Speed Adjustment
-9.5 Meters Cutting Feature
-90° Wedge Slicing feature
-Multilingual Support
-Conveyor profile support unit + Motion sensitive support arm -Profile Support Unit Between Cutting Heads
-Spray saw cooling system
-2 x vertical vices
-4x horizontal vice
OPTION
-Barcode printer
-Cut list transfer via USB memory
VIDEO
