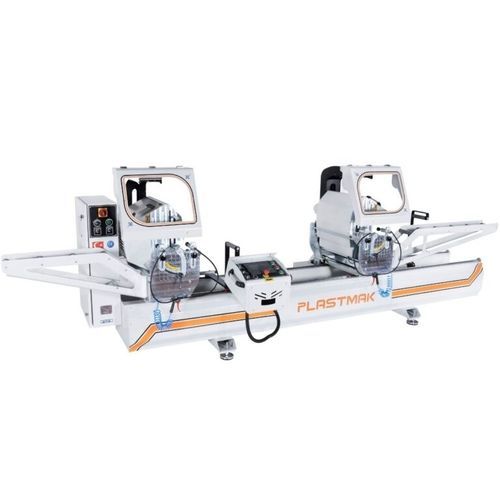

Double-head cutting machine SÇ400

bladefor aluminumfor PVC

It performs double-sided precise cutting of VC and aluminum profiles at 45°- 90° and intermediate angles. “The machine provides automatic adjustment at 45°-90° degrees and easy adjustment at other intermediate degrees. “PLC control system “1000 steps memory capacity including cutting number and size 6mt program for automatic cutting of profiles longer than 4mt Aluminum wedge slicing program “Multi-language support The left head is fixed, the right head is movable Single head and double head operation option Adjustable cutting speed “Diamond saw diameter 450 mm / 500 mm "The saw exit distance is 140 mm. It allows cutting 70 mmx2 profiles . “Safe cutting covers operate automatically with pneumatic system. “The power supply protects the system against sudden voltage changes Option: “CO — Cutting Optimization: Data transfer via USB memory stick High precision motion system with servo motor (+/- 0.1mm) HMI control panel Barcode printer
