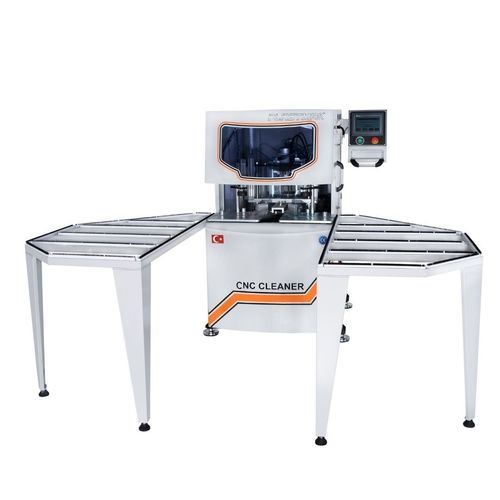

Corner cleaning machine S.Ç6000

brushsemi-automaticCNC

It is a semi-automatic CNC machine designed to clean the burrs formed after welding of PVC window sash door frames and other profiles welded at a 90° angle. The process of cleaning the lower, upper and outer surfaces of the profile independently of each other Touch screen panel Easy memorization process User-friendly adjustable processing speeds Ease of writing the program of the profile to be cleaned thanks to the special program in the machine NC control system with PLC unit Joystick wristwatch allows the user to easily create programs and make precise adjustments to the y-z axes. The average processing time of the machine on a single corner is 5-8 seconds. Possibility of cleaning 400,500 frames in an average of 8 hours of work Unlimited program loading memory Daily monthly production report dashboard The machine has 2 Servos and 1 Hertz motor. Ø250mm Diamond toothed saw All PVC profiles have the ability to make angles and radius and have circular interpolation movement. The front brush stand system prevents scratching of the profiles and provides comfort during movement.
