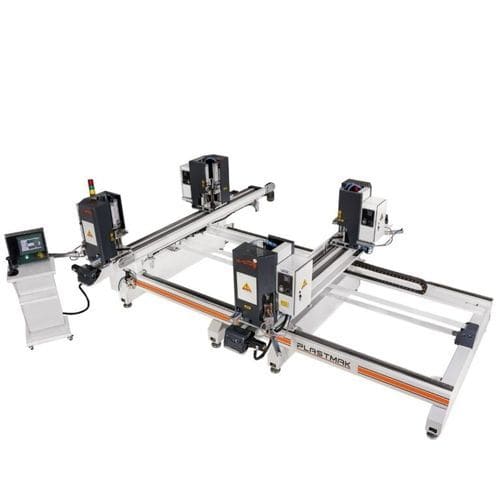

Four corner welding machine SÇ 100 Gold Plus 4

hot plateautomaticfor PVC

It is designed to join four corners of PVC profiles by welding them simultaneously. It is used to weld four corners of PVC profiles at the same time at a 90° angle. 0.2 mm welding possibility for all profile types Quick mold change system that prevents time loss It performs welding operations at high speed and precision thanks to the axes controlled by servo motors and planetary reducers. With the PID system, heating degree and time parameters are adjusted independently of each other. Ability to perform single corner welding. It has a U (thresholdless door) welding system. It has a 10.1″ touch control panel Boiling, cooling times and temperature settings depending on the profile type digitally adjusted Thanks to the teflon rolls, the teflon surface can be changed quickly. PROFILE Weldable Max. Profile Height 200 mm Weldable Minimum Profile Height 40 mm Weldable Frame Minimum Width and Length 410*495 mm 520*520 mm (Seal Printed) Weldable Frame Maximum Width and Length 3700*2700 mm 3650*2650 mm (Seal Printed) Working Angle Range 90 degrees PRECISE MOVEMENT WITH SERVO MOTOR AND PLANETARY REDUCER Highly precise and error-free operation with axes controlled by high-speed and precise servo motors and reducer compatibility. OPTION: Gasket printing system
