- Production Machines
- Cutting Machine
- Rotary blade cutting machine
- PLASTMAK MACHINE

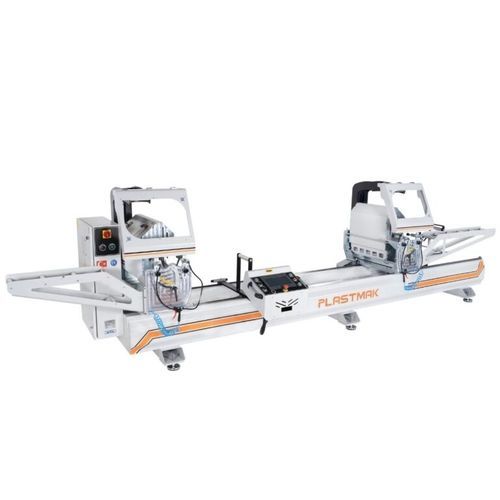

Double-head cutting machine SÇ 4000 S rotary bladefor aluminumfor PVC
Add to favorites
Compare this product
Characteristics
- Technology
- rotary blade
- Material
- for aluminum, for PVC
- Product handled
- profile, double corner
- Configuration
- double-head
- Other characteristics
- automatic, with servo-motor, 45°, 90°
Description
PVC and aluminum profiles, straight or angled, double head Ø 550 mm
It is a fully automatic controlled cutting machine designed for sawing purposes.
Complies with CE standards
Hydro-pneumatic Hydrocheck controlled saw movement
Cutting accuracy +/- 0.1 mm
Automatically adjustable to two angles of 90° and 45° inward. Automatic slicing at 90° angle.
10″ touch color panel display
Providing remote connection and technical support
2x 600 mm saws
Servo motor motion system
Saw exit distance is 180 mm and 80mmx2 profile cutting
Hydrocheak saw speed adjustment
8 Meters cutting feature
Multi-language support
Unlimited size memory capacity
Spray saw cooling system
2 x vertical vices
4 x horizontal vices
Option
Barcode printer
Data transfer via USB memory stick
