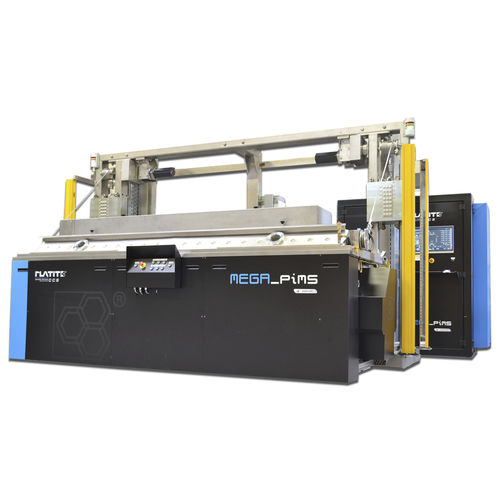

Mega-PiMS for rollers
PLATIT has designed a Custom Coating Solution with simplified loading in which the rollers are positioned horizontally. The cathode is located at the bottom of the coating chamber. PLATIT’s SPUTTTER technology is used to guarantee smooth coatings for high-gloss-polished or textured surfaces.
Technologies applied:
1 x SPUTTER cathode
1 x anode on the opposite side
Etching technologies applied:
LGD® (Lateral Glow Discharge)
Plasma etching with argon, glow discharge
Load and cycle times:
2 - 4 batches/day with a batch time of 6 - 12 h, depending on rollers
Coating volume up to ø 600 x L 3000 [mm]
Coating volume with defined coating thickness up to ø 600 x L 2000 [mm]
Load up to 1500 kg
Software:
Simple use and maintenance
PLATIT’s SmartSoftware (PC and PLC system)
Modern control system with touch screen
Data recording and real-time display of process parameters and flow
Manual and automatic process control
Remote diagnostics and maintenance
Machine dimensions:
Footprint (coating unit with electrical cabinet):
W 4100 x D 2900 x H 2700 +
W 1900 x D 1100 x H 2200 [mm]
