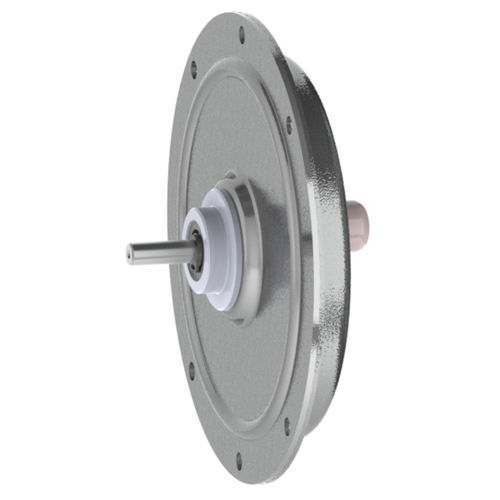

Pancake type motor GPM9brushedDC14.5 V
Add to favorites
Compare this product
Characteristics
- Type
- brushed, DC
- Voltage
- 14.5 V
- Configuration
- permanent magnet, ironless, flat, pancake type
- Applications
- industrial, for robotics, agricultural, for medical applications, for the oil and gas industry, for marine applications, for the automotive industry, for measurement instruments
- Other characteristics
- high-power
- Power
41 W
(0.06 hp)- Intensity
6.9 A
- Torque
0.14 Nm
(0.103259 ft.lb)- Rotational speed
3,000 rpm
(18,849.5559 rad.min-1)
Description
General purpose printed armature motor with ferrite magnets
The PMW GP series can provide a cost effective servo capability in low volumes. Using flat armature technology the motor is ideal for general purpose applications
Two magnet variants of each size are available: standard ferrite (GPM) and high-power neodymium magnets (GPN). There is also a choice of either a standard series wound armature or a higher speed but lower torque parallel wound armature that has a lower resistance (LR)
- Cost Effective General Purpose Design
- 9cm Armature
- Ironless Ultra Flat Construction
- Zero Cogging - Ultra Low Velocity Ripple
- Brushed DC Motor incorporating Ferrite Magnet Technology
- Custom Shaft & Housing Configurations Available
- Brake, Encoder & Tacho Options
- Available as Motor Kit for Ultimate Integration
