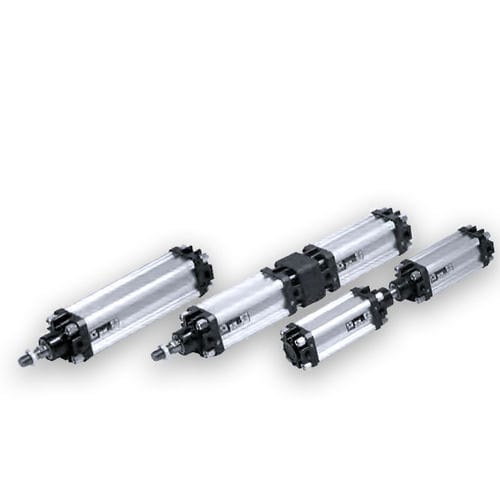

Pneumatic cylinder 1319 - 1320 - 1321 series
magnetic pistonwith piston rodwith through rod

pneumatic cylinder
pneumatic cylinder
pneumatic cylinder
Add to favorites
Compare this product


Characteristics

Type
pneumatic
Technology
magnetic piston, with piston rod, with through rod
Configuration
double-acting, single-acting
Material
aluminum, steel
Norms
ISO 15552, CNOMO
Other characteristics
tandem
Stroke

Min.: 0 mm
(0 in)

Max.: 2,800 mm
(110.236 in)

Bore

Min.: 32 mm
(1.26 in)

Max.: 200 mm
(7.87 in)

Pressure

Min.: 0 bar
(0 psi)

Max.: 10 bar
(145 psi)

Force

Min.: 15 N

Max.: 250 N

Ambient temperature

Min.: -5 °C
(23 °F)

Max.: 150 °C
(302 °F)

Description

This series of pneumatic cylinders is manufactured according to ISO 15552 standardsadapted to VDMA 24562 and CNOMO/AFNOR 49003 that guarantee the interchangeability of the cylinders even without mounted anchoring. PROFILE TUBE CYLINDERS ACCORDING TO STANDARD ISO 15552 – VDMA 24562
