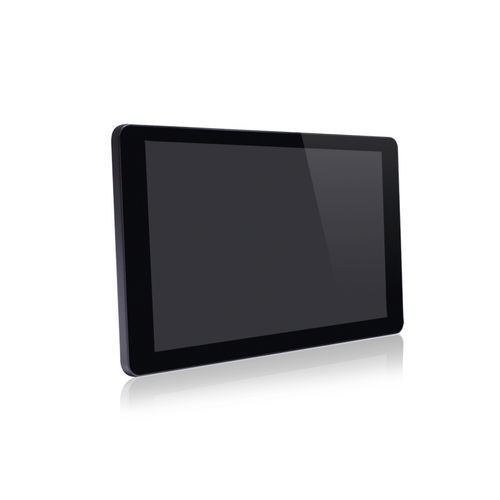

PCAP capacitive touch screen monitor M185 series

10.1"1280 x 800VESA mounting

Product Overview
Display solutions that allow touchpoint deployment in multiple situations.

• High Strength Glass Overlay
• DP / VGA or USB Interface
• Durable Die-Cast Aluminum Base
• Easy Installation – DP/VGA/USB Cable Required
• Spill Proof and Anti-Dust (IP54)
• Best Choice for Space Limited Retail / Hospitality Environments
• True Flat Designed to Suit Harsh Environment
• Touch Screen or Non-Touch Available
• VESA, Pole or Base Stand Available

Product Detail

• Display Port
• VGA Interface
• USB Interface
• True Flat Design
• Wall Mount Available
• Die-Casting Base for Option
• Pole Mount Option

Specification
Model name
M185 PC
M185 PI
M185PJ
M185 GC
M185 GI
M185 GJ

Description
10.1″ True Flat P-Cap Display (PC, PI, PJ models)
Non Touch (GC, GI, GJ models)

Display
Display size
10.1″ (16:10)
True-Flat
Y
Interface
USB (PC, GC), VGA/DP (PI, GI), USB-C/DP (PJ, GJ)
Optimal Resolution
1280 x 800
Viewing angle
170 degrees (H); 170 degrees (V)
Brightness (Panel)
350
Contrast Ratio
800:1
Response Time (ms)
25 ms (typ)
Power supply
DC 5V (PC, GC), DC 12V (PI, GI), USB-C 5V / DC 12V (PJ, GJ)
Active Area
216.96 (H) x 135.60 (V) mm
Color Arrangement
RGB-stripe
Touch type
True Flat P-Cap Technology (PC, PI, PJ models)
Optional peripherals
2D scanner, USB Type; RFID reader, 13.56MHz, USB Type
Physical Dimension (WxHxD mm)
260.2 x 168.3 x 30 mm

Environment
Operating Condition
Temperature: 0℃ ~ 40℃
Humidity: 20% ~ 80% RH, non-condensing
Storage Condition
Temperature: -10℃ ~ 50℃
Humidity: 10% ~ 90% RH, non-condensing

Certifications
EMI/Safety: CE, FCC, LVD
Wall Mount kit
VESA 75 x 75

Technical Specifications

• Model: M185 PC, M185 PI, M185PJ, M185 GC, M185 GI, M185 GJ
• Display size: 10.1″ (16:10)
• True Flat: Yes
• Interfaces: USB, VGA/DP, USB-C/DP (depending on model)
• Optimal Resolution: 1280 x 800
• Viewing angle: 170° (H) / 170° (V)
• Brightness: 350 nits
• Contrast Ratio: 800:1
• Response Time: 25 ms (typical)
• Power supply: DC 5V, DC 12V, USB-C 5V / DC 12V (depending on model)
• Active Area: 216.96 x 135.60 mm
• Color Arrangement: RGB-stripe
• Touch type: True Flat P-Cap Technology (on touch models)
• Optional peripherals: 2D scanner (USB), RFID reader 13.56MHz (USB)
• Physical Dimension: 260.2 x 168.3 x 30 mm
• Operating Temperature: 0℃ ~ 40℃
• Operating Humidity: 20% ~ 80% RH, non-condensing
• Storage Temperature: -10℃ ~ 50℃
• Storage Humidity: 10% ~ 90% RH, non-condensing
• Certifications: CE, FCC, LVD
• Wall Mount: VESA 75 x 75
