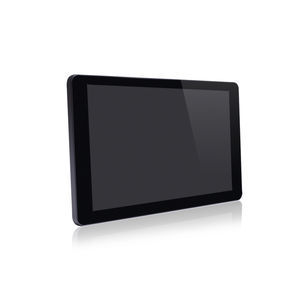

LCD monitor M357 series

touch screentouchfor displays

Product Overview
Display solutions that allow touchpoint deployment in multiple situations.

• Detachable Stand / Supports VESA mounting
• Spill Proof & Anti-Dust
• Supports 2nd Display & MSR
• True Flat Designed to Suit Harsh Environments
• P-Cap Touch | Non-Touch
• Stand Available

Specification
M357
Description
15″ VGA/DVI PCAP (4:3)
Display & Touch
Display Size: 15″
True-Flat: YES (IP54)
Interface: VGA+DVI
Resolution: 1024 x 768
Viewing Angle: 70/80/80/80 degree (U/D/L/R)
Brightness (nits): 350
Contrast Ratio: 800 : 1
Response Time (ms): 8
Power Supply: DC 12V
OS Support: Windows 10, 8.1, 8, 7
Touch Type
M357PB: Projected Capacitive (USB)
M357GB: Non-Touch
Input Terminals
For Video Signal: D-Sub 15-pin, DVI-D
For Power: DC Jack
For Touch Signal: USB Type B
For VFD: RJ48
For Peripherals: USB Type A *5
For Audio: Option
Physical Dimension
Dimensions (W x H x D) mm: 365.2 x 281 x 48
Weight (N. W.) (Kg): 4.6
Environment
Operating Condition: 0ºC~40ºC
Storage Condition: -10ºC~50ºC
Power Consumption: Max. 20W
Certifications
EMI / Safety: CE, FCC, LVD
Options
Wall Mount Kit: Option, 75 x 75mm VESA
Base: M457 Option
MSR: Option
VFD: N/A
Pole Stand: N/A
2nd Display: Option


Technical Features / Specifications

• Model No.: M357PB (Projected Capacitive Touch), M357GB (Non-Touch)
• Display Size: 15″
• Resolution: 1024 x 768
• Brightness: 350 nits
• Contrast Ratio: 800:1
• Viewing Angle: 70/80/80/80 degree (U/D/L/R)
• True-Flat (IP54)
• VGA + DVI Interface
• Power Supply: DC 12V
• OS Support: Windows 10, 8.1, 8, 7
• Input Terminals: D-Sub 15-pin, DVI-D, DC Jack, USB Type B, RJ48, USB Type A *5
• Dimensions: 365.2 x 281 x 48 mm
• Weight: 4.6 kg
• Operating Condition: 0ºC~40ºC
• Storage Condition: -10ºC~50ºC
• Power Consumption: Max. 20W
• Certifications: CE, FCC, LVD
• Wall Mount Kit: Option, 75 x 75mm VESA
• Base: M457 Option
• MSR: Option
• 2nd Display: Option
