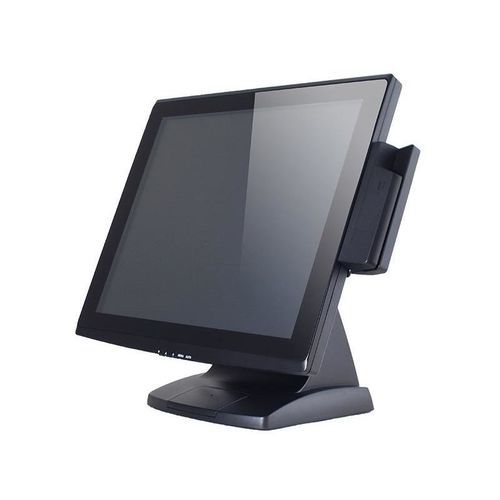

PCAP touchscreen monitor M458 series

multitouch screenprotection17"

Product Overview
Display solutions that allow touchpoint deployment in multiple situations.

• 17″ True Flat P-CAP Touch Display
• Model No.: M458PB | M458GB
• P-CAP Multi-Touch | Non-Touch
• Easy Maintenance
• 6H Scratch Resistance Level
• Elegant and Modern Design
• Ingress Protection Rate: IP54
• Optional MSR and 2nd Display

Specification
M458
Description
17″ VGA/DVI PCAP (4:3)
Display
Display Size: 17″
True-Flat: YES (IP54)
Interface: VGA+DVI
Resolution: 1280 x 1024
Viewing Angle: 80/80/85/85 degree (U/D/L/R)
Brightness (nits): 250
Contrast Ratio: 1000 : 1
Response Time (ms): 5
Power Supply: DC 12V
OS Support: Windows 10, 8.1, 8, 7
Touch Type
M458PB: Projected Capacitive (USB)
M458GB: Non-Touch
Input Terminals
For Video Signal: D-Sub 15-pin, DVI-D
For Power: DC Jack
For Touch Signal: USB Type B
For VFD: RJ48
For Peripherals: USB Type A *2
For Audio: Option
Physical Dimension
Dimensions (W x H x D) mm: 399.2 x 381.5 x 200
Weight (N. W.) (Kg): 5.86
Environment
Operating Condition: 0ºC~40ºC
Storage Condition: -10ºC~50ºC
Power Consumption: Max. 20W
Certifications
EMI / Safety: CE, FCC
Options
Wall Mount Kit: VESA
Base: Standard
MSR: Option
VFD: Option
Pole Stand: N/A
2nd Display: Option


Technical Characteristics / Specifications

• Display Size: 17″
• True-Flat: YES (IP54)
• Interface: VGA+DVI
• Resolution: 1280 x 1024
• Viewing Angle: 80/80/85/85 degree (U/D/L/R)
• Brightness: 250 nits
• Contrast Ratio: 1000:1
• Response Time: 5 ms
• Power Supply: DC 12V
• OS Support: Windows 10, 8.1, 8, 7
• Touch Type: M458PB: Projected Capacitive (USB); M458GB: Non-Touch
• Input Terminals: D-Sub 15-pin, DVI-D, DC Jack, USB Type B, RJ48, USB Type A *2
• Dimensions (W x H x D): 399.2 x 381.5 x 200 mm
• Weight: 5.86 kg
• Operating Condition: 0ºC~40ºC
• Storage Condition: -10ºC~50ºC
• Power Consumption: Max. 20W
• Certifications: CE, FCC
• Wall Mount Kit: VESA
• Base: Standard
• MSR: Option
• VFD: Option
• Pole Stand: N/A
• 2nd Display: Option
