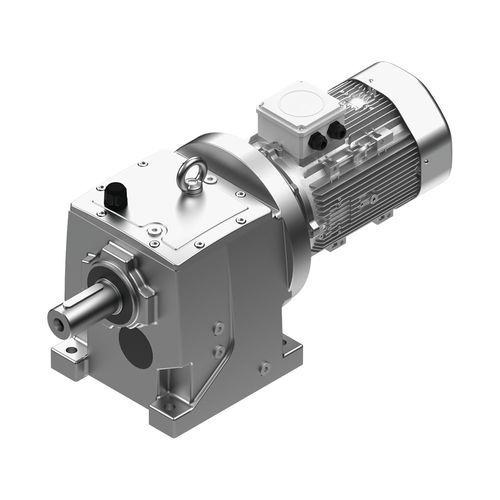

Helical gearbox PA/PF series500 - 1000 Nm200 - 500 Nm100 - 200 Nm
Add to favorites
Compare this product
Characteristics
- Type
- helical
- Torque
- 500 - 1000 Nm, 200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm, 1 - 2 kNm, 20 - 50 Nm, 2 - 5 kNm, 1 - 5 Nm, > 10 kNm, 5 - 10 kNm, 10 - 20 Nm, 0.2 - 0.5 Nm, 5 - 10 Nm
- Applications
- drive
- Other characteristics
- flange, high-quality, mounted, motor, motor
- Rotational speed
Min.: 0.1 rpm
(0.63 rad.min-1)Max.: 1,170 rpm
(7,351.33 rad.min-1)- Power
Min.: 0.12 kW
(0.16 hp)Max.: 160 kW
(217.54 hp)
Description
These series which are provided in foot- (PA) and flange (PF) mounted options serve up in drive systems that need wide reduction ratio and maximum 26900 Nm of output moment.
Helical gear units with parallel axis input and output.
Casing with feet, flange F options.
A rigid structure in cases.
System resistance calculations are made in accordance with ISO, DIN and NIEMANN standards.
Different input options may be provided (Coupled motor, IEC, PAM, W, Servo motor connected, ...).
Different flange measurements may be provided in B5 mountings.
Cases are manufactured from sfero (GGG 40-50) and peak (GG 20-25).
Gears are made of cast and 21NiCrMo2 case-hardening steel.
High-quality bearing and sealing components are used.
Special requests of the customers may be considered.
