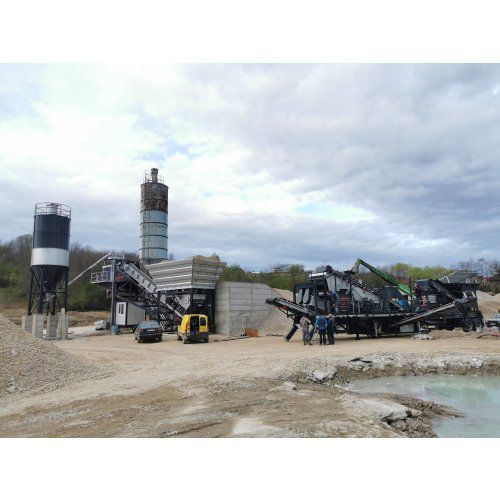

Jaw crushing plant PMJI

mobileprimarysecondary

Redefining the way you process materials, Polygonmach introduces the PMJI, a state-of-the-art mobile crushing and screening plant on wheels. Engineered specifically for processing middle hardness grade materials such as limestone, riverstone, and dolomite, this unit promises efficiency and performance, wrapped in a compact, transport-friendly design. Our PMJI unit boasts an impressive production capacity of 60-200 tph, depending on the hardness grade of the materials to be crushed. It offers a maximum feeding size of 550 x 300, 850x650, 1100x850 mm, and a convenient feeding height of 3.8 meters, accommodating diverse operational needs. The primary configuration comprises a Primary Jaw, Secondary Impactor or Tertiary Impactor, and a 3 decks screen. Its power is sourced from a robust 230 kW motor and a 350 kVA electric generator. Weighing 46 tonnes, the PMJI mobile plant maintains a compact footprint with dimensions of 16(L) x 3.2(W) x 4.2(L) meters. This lightweight design is perfect for easy transportation and setup. The single chassis on wheels comes equipped with hydraulic opening legs, adding another dimension of convenience and flexibility to your operations. Constructed with high-quality components, the PMJI plant features a feeding hopper with vibrating feeder, PJC-60 Primary Jaw Crusher, PSI-1210-12-15 Secondary Impactor or PTC-1275-100-150 Tertiary Impact Crusher, bypass conveyor, feeding conveyor, 3 decks vibrating screen, feedback conveyor, and fold-up type stockpile conveyors. This combination ensures a seamless operation, minimizing downtime and maximizing productivity.
